Pilot Electric Mfg.: Broadcast [Radio] ID = 1382387 480x640

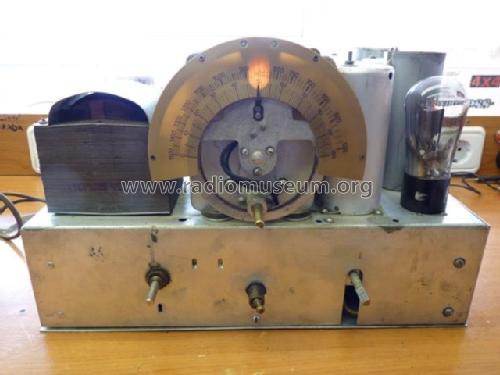

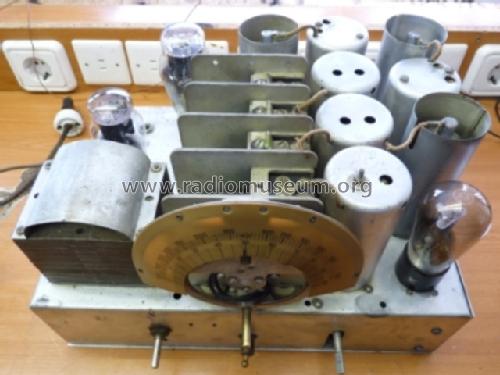

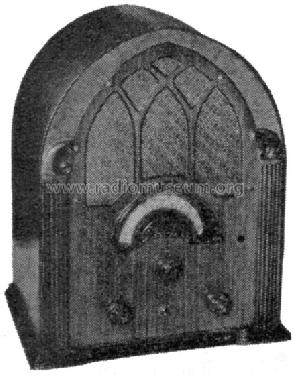

Select picture or schematic to display from thumbnails on the right and click for download.
For model Broadcast, Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
alternative name

Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Year: 1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 24 27 35 24 47 80
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Broadcast - Pilot Electric Mfg. Co. Radio
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 390 x 480 x 270 mm / 15.4 x 18.9 x 10.6 inch
Price in first year of sale 44.00 $
External source of data E. Erb 3-907007-36-0
Mentioned in A Blast from the Past (p.85)
Literature/Schematics (1) Machine Age to Jet Age II
Literature/Schematics (2) Cathedral & Tombstone Radios


All listed radios etc. from Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
