Dragon All Wave 7

Dragon All Wave 7; Pilot Electric Mfg. (ID = 596505) Radio

Dragon All Wave 7; Pilot Electric Mfg. (ID = 596507) Radio

Dragon All Wave 7; Pilot Electric Mfg. (ID = 596508) Radio
Dragon All Wave 7; Pilot Electric Mfg. (ID = 1052695) Radio
Use red slider bar for more.
Dragon All Wave 7; Pilot Electric Mfg. (ID = 1052695) Radio
Pilot Electric Mfg.: Dragon All Wave 7 [Radio] ID = 1052695 400x712
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dragon All Wave 7, Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY):
Image Courtesy of Mark V. Stein for Radiomuseum.org use only.

Country:  United States of America (USA)
Manufacturer / Brand:  Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
alternative name

Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Year: 1933 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 58 57 56 58 2A6 57 2A5 5Z3
Main principle Superhet with RF-stage; ZF/IF 115 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 115; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Dragon All Wave 7 - Pilot Electric Mfg. Co. Radio
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes 4 legged console with stretcher base.
External source of data Ernst Erb

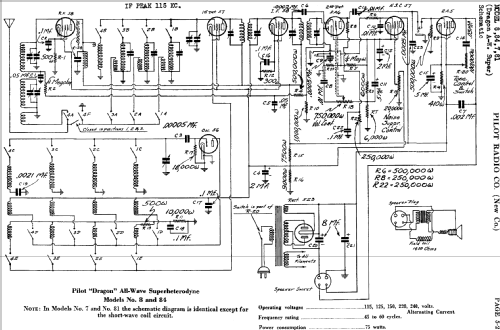

Circuit diagram reference Rider's Perpetual, Volume 5 = ca. 1934 and before
Mentioned in Pre-War Consoles


All listed radios etc. from Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
Here you find 508 models, 231 with images and 375 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
