AA-908 ; Pilot Electric Mfg. (ID = 644445) Ampl/Mixer
Pilot Electric Mfg.: AA-908 [Ampl/Mixer] ID = 644445 700x550
Select picture or schematic to display from thumbnails on the right and click for download.
For model AA-908, Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY):
Sams Photofact Folders

Country:  United States of America (USA)
Manufacturer / Brand:  Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
alternative name

Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Year: 1959 ? Category: Audio Amplifier or -mixer

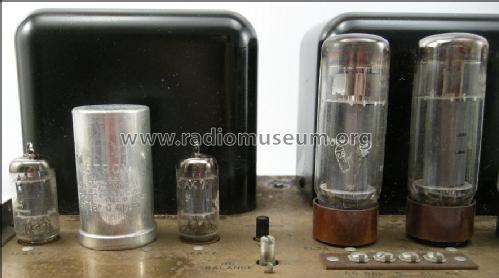

Valves / Tubes 5: 12AX7 12AX7 6CA7 6CA7 5U4GA
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 105 - 120 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: AA-908 - Pilot Electric Mfg. Co. Radio
Material Metal case
Shape Chassis only or for «building in»

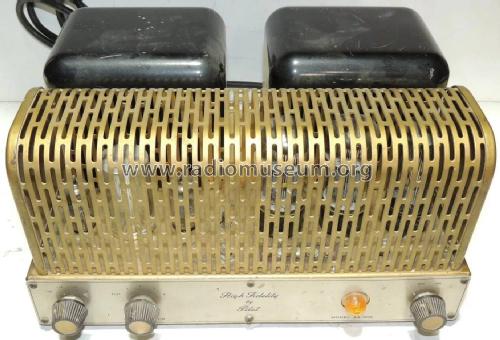

Notes The Pilot Model AA-908 is an AC Operated 5 Tube Audio Amplifier.

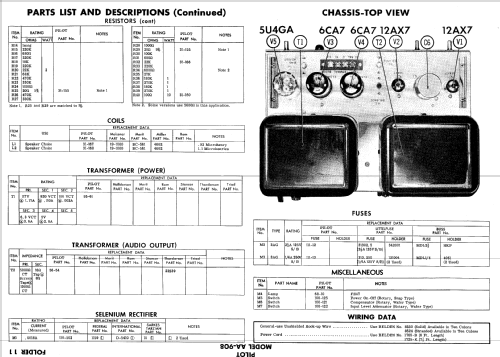

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 3-59, Set 433, Folder 11)

Model page created by Egon Penker. See "Data change" for further contributors.
