ABC Power Pack K-111

ABC Power Pack K-111; Pilot Electric Mfg. (ID = 594289) Kit
ABC Power Pack K-111; Pilot Electric Mfg. (ID = 541751) Kit ABC Power Pack K-111; Pilot Electric Mfg. (ID = 1293745) Kit
Use red slider bar for more.
ABC Power Pack K-111; Pilot Electric Mfg. (ID = 541751) Kit

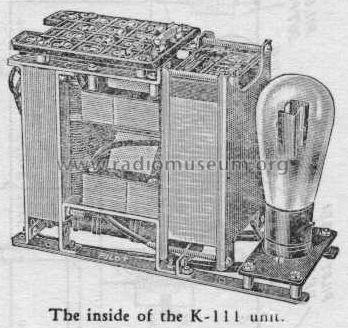

Pilot Electric Mfg.: ABC Power Pack K-111 [Kit] ID = 541751 348x328
Select picture or schematic to display from thumbnails on the right and click for download.
For model ABC Power Pack K-111, Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY):
Prospekltbild

Country:  United States of America (USA)
Manufacturer / Brand:  Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
alternative name

Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Year: 1929 Category: Kit (Parts plus instruction) or building instructions only
Valves / Tubes 1: 80
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: ABC Power Pack K-111 - Pilot Electric Mfg. Co. Radio
Material Metal case
Shape Chassis only or for «building in»
Notes ABC Power Pack for AC Super Wasp K115.
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
