AF-860 AM-FM Pilotuner

AF-860 AM-FM Pilotuner ; Pilot Electric Mfg. (ID = 466301) Radio AF-860 AM-FM Pilotuner ; Pilot Electric Mfg. (ID = 466302) Radio
AF-860 AM-FM Pilotuner ; Pilot Electric Mfg. (ID = 466300) Radio AF-860 AM-FM Pilotuner ; Pilot Electric Mfg. (ID = 404286) Radio
Use red slider bar for more.
AF-860 AM-FM Pilotuner ; Pilot Electric Mfg. (ID = 466301) Radio

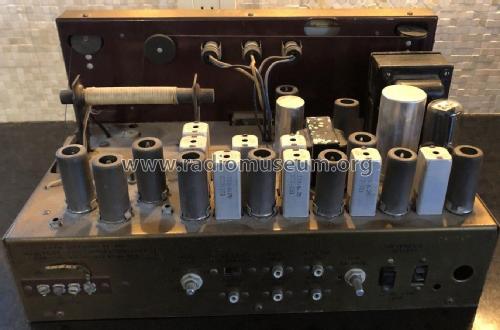

Pilot Electric Mfg.: AF-860 AM-FM Pilotuner [Radio] ID = 466301 720x540
Select picture or schematic to display from thumbnails on the right and click for download.
For model AF-860 AM-FM Pilotuner, Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY):
aus ebay, Verkäufer jamallwe

Country:  United States of America (USA)
Manufacturer / Brand:  Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
alternative name

Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 12: 6BA6 6U8 6BA6 6BA6 6AU6 6AU6 6AL5 12AT7 12AX7 12AT7 12AU7 5Y3
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: AF-860 AM-FM Pilotuner - Pilot Electric Mfg. Co. Radio
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 14.25 x 9 x 7.5 inch / 362 x 229 x 191 mm
Notes

AM-FM tuner and audio preamplifier module.

Frequency Range:

FM: 88 to 108 MHz

AM: 540 to 1700 KC

Net weight (2.2 lb = 1 kg) 21 lb (21 lb 0 oz) / 9.534 kg
Price in first year of sale 179.50 USA
Source of data - - Manufacturers Literature
Literature/Schematics (1) 'The Radio-Electronic Master Buying Guide, 1956'.

Model page created by Emilio Ciardiello. See "Data change" for further contributors.
