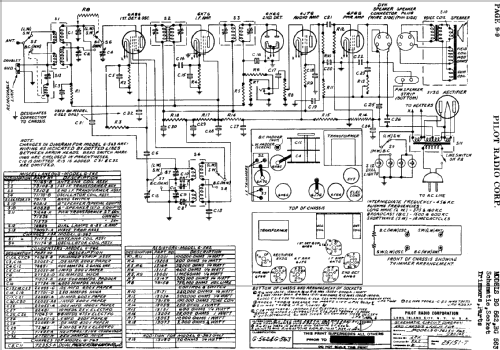

BG-562 ; Pilot Electric Mfg. (ID = 600524) Radio

BG-562 ; Pilot Electric Mfg. (ID = 600525) Radio
BG-562 ; Pilot Electric Mfg. (ID = 807488) Radio BG-562 ; Pilot Electric Mfg. (ID = 807490) Radio
BG-562 ; Pilot Electric Mfg. (ID = 807491) Radio BG-562 ; Pilot Electric Mfg. (ID = 807489) Radio
BG-562 ; Pilot Electric Mfg. (ID = 807492) Radio BG-562 ; Pilot Electric Mfg. (ID = 998790) Radio
Use red slider bar for more.
BG-562 ; Pilot Electric Mfg. (ID = 807488) Radio
Pilot Electric Mfg.: BG-562 [Radio] ID = 807488 624x822
Select picture or schematic to display from thumbnails on the right and click for download.
For model BG-562, Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY):
Ebay 140437992989

Country:  United States of America (USA)
Manufacturer / Brand:  Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
alternative name

Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A8G 6K7G 6H6G 6J7G 6F6G 5Y3
Main principle Superheterodyne (common); ZF/IF 456 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 115; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: BG-562 - Pilot Electric Mfg. Co. Radio
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 13.625 x 18.375 x 10.375 inch / 346 x 467 x 264 mm
Notes 6" or 8" speaker.
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Literature/Schematics (1) Radio Retailing (Radio & Television R.) (December 1937.)
