Dragon 11-DC

Dragon 11-DC; Pilot Electric Mfg. (ID = 570562) Radio

Dragon 11-DC; Pilot Electric Mfg. (ID = 595656) Radio
Dragon 11-DC; Pilot Electric Mfg. (ID = 712153) Radio
Use red slider bar for more.
Dragon 11-DC; Pilot Electric Mfg. (ID = 712153) Radio

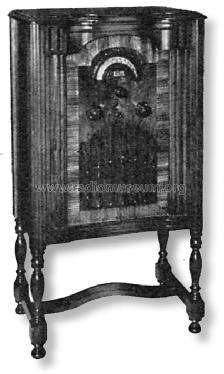

Pilot Electric Mfg.: Dragon 11-DC [Radio] ID = 712153 427x713
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dragon 11-DC, Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY):
Image Courtesy of Mark V. Stein for Radiomuseum.org use only.

Country:  United States of America (USA)
Manufacturer / Brand:  Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
alternative name

Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Year: 1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 236 237 239 236 238 238 238
Main principle Superheterodyne (common); ZF/IF 115 kHz; Screengrid 1926-1935
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Direct Current supply (DC) / 110; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Dragon 11-DC - Pilot Electric Mfg. Co. Radio
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes Short Wave: 3 bands. 4 legged console with stretcher base.
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 3 = 1933 and before
Mentioned in Pre-War Consoles
