FA-540

FA-540 ; Pilot Electric Mfg. (ID = 619104) Radio

FA-540 ; Pilot Electric Mfg. (ID = 619106) Radio

FA-540 ; Pilot Electric Mfg. (ID = 619109) Radio

FA-540 ; Pilot Electric Mfg. (ID = 619111) Radio

FA-540 ; Pilot Electric Mfg. (ID = 619112) Radio

FA-540 ; Pilot Electric Mfg. (ID = 619114) Radio

FA-540 ; Pilot Electric Mfg. (ID = 619115) Radio

FA-540 ; Pilot Electric Mfg. (ID = 619116) Radio
FA-540 ; Pilot Electric Mfg. (ID = 619102) Radio
Use red slider bar for more.
FA-540 ; Pilot Electric Mfg. (ID = 619102) Radio
Pilot Electric Mfg.: FA-540 [Radio] ID = 619102 933x627
Select picture or schematic to display from thumbnails on the right and click for download.
For model FA-540, Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY):
SAMS Photofact

Country:  United States of America (USA)
Manufacturer / Brand:  Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
alternative name

Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6BA6 6U8 6AB4 6BA6 6DA5 6AU6A 6AL5 12AU7 6X4
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 105 - 120 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: FA-540 - Pilot Electric Mfg. Co. Radio
Shape Tablemodel, low profile (big size).
Notes

The Pilot Model FA-540 is an AC operated 9 Tube mono FM-AM Tuner.

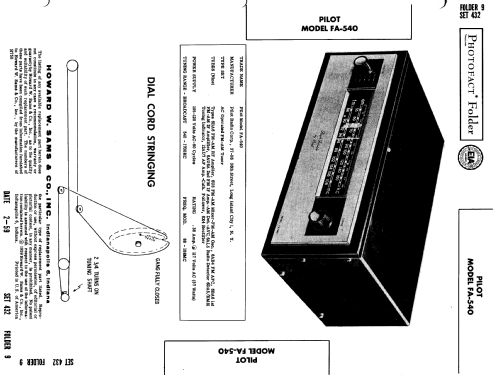

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 2-59, Set 432, Folder 9)

Model page created by Egon Penker. See "Data change" for further contributors.
