FM-12 Late

FM-12 ; Pilot Electric Mfg. (ID = 604481) Radio

FM-12 ; Pilot Electric Mfg. (ID = 604482) Radio

FM-12 ; Pilot Electric Mfg. (ID = 604483) Radio

FM-12 ; Pilot Electric Mfg. (ID = 604484) Radio
Use red slider bar for more.
FM-12 ; Pilot Electric Mfg. (ID = 604481) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
alternative name

Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 13: 1852 or 6AC7 6K8 1852 or 6AC7 1852 or 6AC7 6U5 or 6G6 6SJ7 6H6 6H6 6SQ7 6C8G 6L6G 6L6G 5U4G
Main principle Superhet with RF-stage; ZF/IF 455 / 4300 kHz
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: FM-12 [Late] - Pilot Electric Mfg. Co. Radio
Notes AM and FM (42 to 50 mc.) receiver; tuning eye; push-pull af output stage; 10" or 12" speaker.
External source of data Ernst Erb

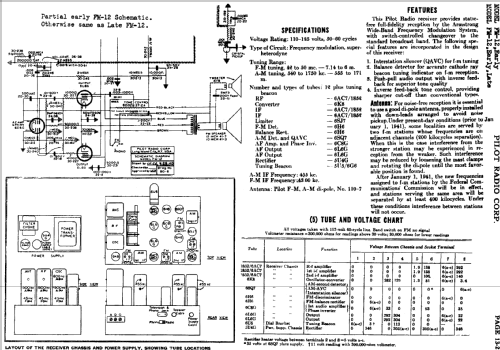

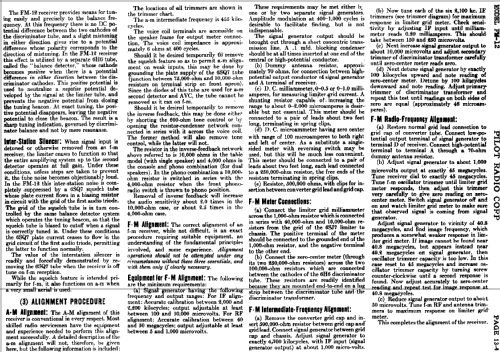

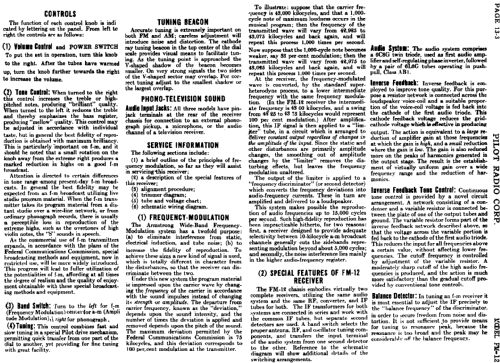

Circuit diagram reference Rider's Perpetual, Volume 13 = 1942 and before


All listed radios etc. from Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
Here you find 508 models, 231 with images and 375 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
