FM-AM Tuner FA-690

FM-AM Tuner FA-690; Pilot Electric Mfg. (ID = 544572) Radio

FM-AM Tuner FA-690; Pilot Electric Mfg. (ID = 544575) Radio

FM-AM Tuner FA-690; Pilot Electric Mfg. (ID = 544576) Radio

FM-AM Tuner FA-690; Pilot Electric Mfg. (ID = 544578) Radio

FM-AM Tuner FA-690; Pilot Electric Mfg. (ID = 544579) Radio

FM-AM Tuner FA-690; Pilot Electric Mfg. (ID = 544580) Radio

FM-AM Tuner FA-690; Pilot Electric Mfg. (ID = 544581) Radio

FM-AM Tuner FA-690; Pilot Electric Mfg. (ID = 544583) Radio

FM-AM Tuner FA-690; Pilot Electric Mfg. (ID = 544584) Radio

FM-AM Tuner FA-690; Pilot Electric Mfg. (ID = 544585) Radio
FM-AM Tuner FA-690; Pilot Electric Mfg. (ID = 461865) Radio FM-AM Tuner FA-690; Pilot Electric Mfg. (ID = 461866) Radio

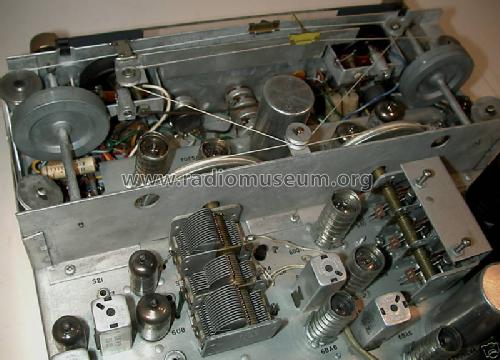

FM-AM Tuner FA-690; Pilot Electric Mfg. (ID = 461867) Radio FM-AM Tuner FA-690; Pilot Electric Mfg. (ID = 461868) Radio
FM-AM Tuner FA-690; Pilot Electric Mfg. (ID = 461869) Radio FM-AM Tuner FA-690; Pilot Electric Mfg. (ID = 461870) Radio
FM-AM Tuner FA-690; Pilot Electric Mfg. (ID = 461872) Radio FM-AM Tuner FA-690; Pilot Electric Mfg. (ID = 461873) Radio
Use red slider bar for more.
FM-AM Tuner FA-690; Pilot Electric Mfg. (ID = 461865) Radio
Pilot Electric Mfg.: FM-AM Tuner FA-690 [Radio] ID = 461865 784x456
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM-AM Tuner FA-690, Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY):
aus ebay, Verkäufer wildebug

Country:  United States of America (USA)
Manufacturer / Brand:  Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
alternative name

Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Year: 1958 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 19: 6BQ7A 6U8 6BA6 6BA6 6AU6 6BN6 6AU6 12AU7 12AU7 6BA6 6U8 6BA6 6BA6 12AX7 12AX7 12AX7 12AX7 12AU7 EZ81
Semiconductors (the count is only for transistors) Selenium-Rectifier
Main principle Superhet with RF-stage
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 105-120 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: FM-AM Tuner FA-690 - Pilot Electric Mfg. Co. Radio
Material Metal case
Shape Book-shelf unit.
Notes Tuner & PreAmp; an external Multiplex Adapter is required for FM-Stereo.
Net weight (2.2 lb = 1 kg) 22 lb 0 oz (22 lb) / 9.988 kg
Price in first year of sale 269.50 $

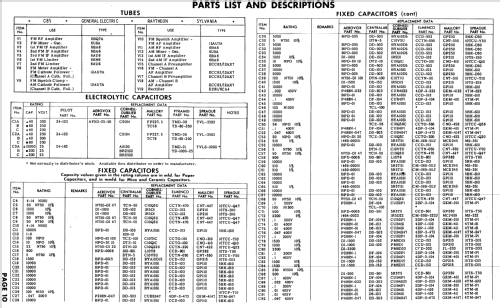

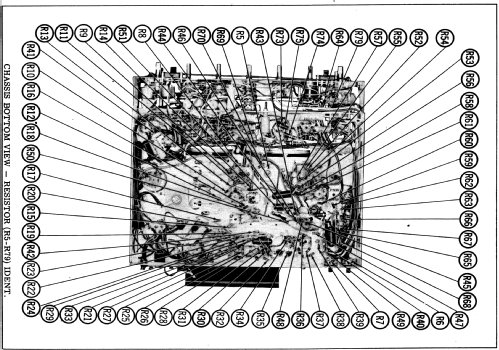

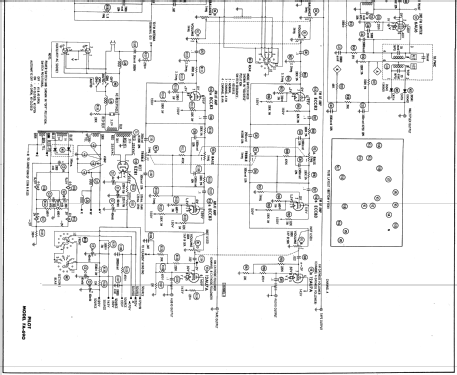

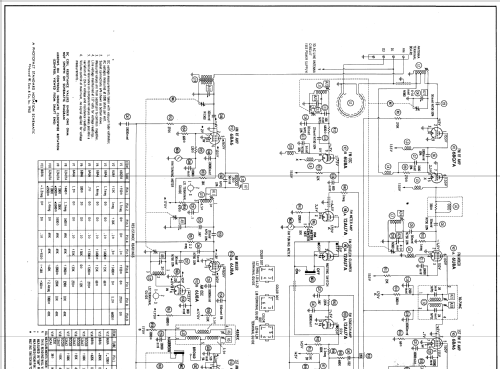

Mentioned in Photofact Folder, Howard W. SAMS (Set 477 folder 11 date 3-60)
Literature/Schematics (1) Radio Shack Catalog (1959, page 9)

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
