• Country
• United States of America (USA)

• Manufacturer / Brand
• Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)

• Year
• 1961 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 353929

• • alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superhet with RF-stage

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 105 - 120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: FM Tuner Mark III - Pilot Electric Mfg. Co. Radio

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 9.74 x 5.5 x 3.25 inch / 247 x 140 x 83 mm

• Price in first year of sale
• 49.95 USD

• Mentioned in

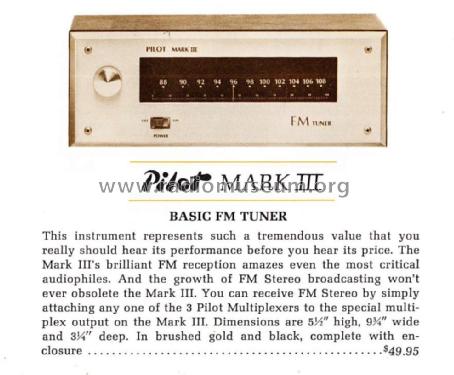

• - - Manufacturers Literature (Pilot Stereophonic Components Catalog, page 8 (circa 1962))

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 548, Folder 11, October 1961)

• Author
• Model page created by David Erali. See "Data change" for further contributors.
