H-485 Ch= H480

H-485 Ch= H480; Pilot Electric Mfg. (ID = 601372) Radio

H-485 Ch= H480; Pilot Electric Mfg. (ID = 601373) Radio
H-485 Ch= H480; Pilot Electric Mfg. (ID = 2637523) Radio H-485 Ch= H480; Pilot Electric Mfg. (ID = 2637519) Radio
H-485 Ch= H480; Pilot Electric Mfg. (ID = 2637520) Radio H-485 Ch= H480; Pilot Electric Mfg. (ID = 2637521) Radio
H-485 Ch= H480; Pilot Electric Mfg. (ID = 2637522) Radio
Use red slider bar for more.
H-485 Ch= H480; Pilot Electric Mfg. (ID = 2637523) Radio

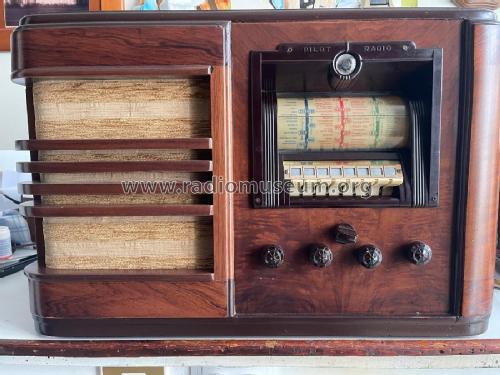

Pilot Electric Mfg.: H-485 Ch= H480 [Radio] ID = 2637523 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model H-485 Ch= H480, Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY):
cabinet is original, but glossed by carpenter. also, changed the screen cloth.

Country:  United States of America (USA)
Manufacturer / Brand:  Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
alternative name

Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Year: 1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6K7 6K8 6K7 6Q7 6U5 25L6G 25Z6G 81973 or 81972
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-125 / 220-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: H-485 Ch= H480 - Pilot Electric Mfg. Co. Radio
Notes

Push-button tuner; tuning eye; 8" or 12" speaker.
Power supply voltage 110-125 V (ballast 81973) or 220-240 V (ballast 81972)  AC-DC;
export model.

External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 10 = 1939 and before
