• Year
  • 1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 51951
    • alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation

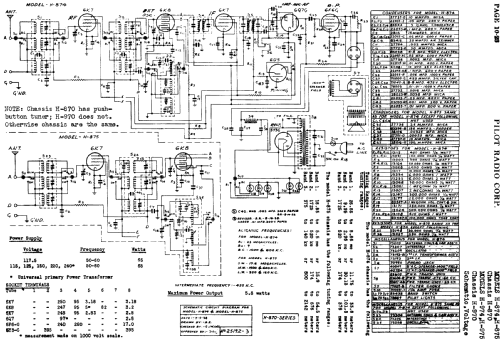

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • from Radiomuseum.org
  • Model: H-975 Ch= H970 - Pilot Electric Mfg. Co. Radio
  • Notes
  • Tuning eye; 8" or 12" speaker.
    Power supply voltage 117,5 V (standard model) or 115, 125, 150, 220, 240 V (export model only).
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 10 = 1939 and before
