Booster Unit K-120

Booster Unit K-120; Pilot Electric Mfg. (ID = 187917) Kit
Use red slider bar for more.
Booster Unit K-120; Pilot Electric Mfg. (ID = 187917) Kit

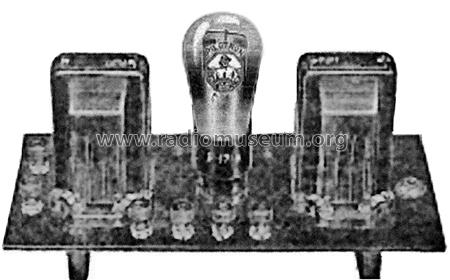

Pilot Electric Mfg.: Booster Unit K-120 [Kit] ID = 187917 450x280
Select picture or schematic to display from thumbnails on the right and click for download.
For model Booster Unit K-120, Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
alternative name

Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Year: 1930 ? Category: Kit (Parts plus instruction) or building instructions only
Valves / Tubes 1: 71A
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Booster Unit K-120 - Pilot Electric Mfg. Co. Radio
Material Bakelite, TUBES VISIBLE
Dimensions (WHD) 10 x 0 x 4.5 inch / 254 x 0 x 114 mm
Notes Booster-Unit (Kit) for A.C. Super Wasp (K115), to build on a drilled bakelite base Input- and Outputtransformer. Pilot boasted with their own manufactured P... tubes, which are in fact just clones of standard types. Here a simple 71A is called a Pilotron P171A (not to be confused with Pliotrons!).
Mentioned in Pilot Radio Products, Catalog No. 33, Sept. 1930
Literature/Schematics (1) Catalog description

Model page created by Daniel Consales. See "Data change" for further contributors.
