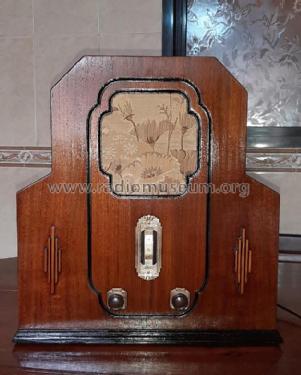

AC Midget 1st type

AC Midget ; Pilot Electric Mfg. (ID = 595322) Radio

AC Midget ; Pilot Electric Mfg. (ID = 595323) Radio
AC Midget ; Pilot Electric Mfg. (ID = 1143241) Radio AC Midget ; Pilot Electric Mfg. (ID = 1709314) Radio
AC Midget ; Pilot Electric Mfg. (ID = 765747) Radio AC Midget ; Pilot Electric Mfg. (ID = 765748) Radio
Use red slider bar for more.
AC Midget ; Pilot Electric Mfg. (ID = 1143241) Radio
Pilot Electric Mfg.: AC Midget [Radio] ID = 1143241 517x541
Select picture or schematic to display from thumbnails on the right and click for download.
For model AC Midget 1st type, Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY):
Image Courtesy of Mark V. Stein for Radiomuseum.org use only.

Country:  United States of America (USA)
Manufacturer / Brand:  Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
alternative name

Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Year: 1930/1931 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 24 24 24 27 45 80
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); Screengrid 1926-1935
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: AC Midget [1st type] - Pilot Electric Mfg. Co. Radio
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes

spezielle Form [3330304B]

Price in first year of sale 560.00 SFR
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in Machine Age to Jet Age II
Literature/Schematics (1) Rider's Perpetual, Volume 3 = 1933 and before
Literature/Schematics (2) Cathedral & Tombstone Radios (page 199.)


All listed radios etc. from Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
Here you find 506 models, 224 with images and 372 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
