AC Midget 2nd type

AC Midget ; Pilot Electric Mfg. (ID = 27656) Radio

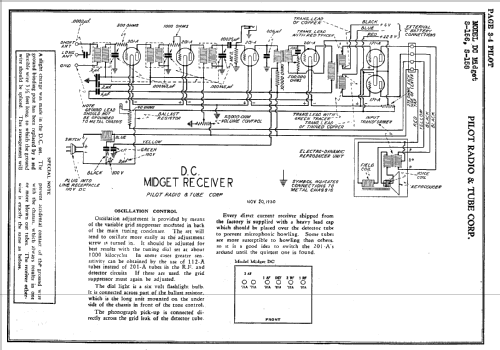

AC Midget ; Pilot Electric Mfg. (ID = 27657) Radio

AC Midget ; Pilot Electric Mfg. (ID = 595325) Radio

AC Midget ; Pilot Electric Mfg. (ID = 595327) Radio
AC Midget ; Pilot Electric Mfg. (ID = 1143242) Radio AC Midget ; Pilot Electric Mfg. (ID = 2499435) Radio
AC Midget ; Pilot Electric Mfg. (ID = 2499436) Radio AC Midget ; Pilot Electric Mfg. (ID = 2499437) Radio
AC Midget ; Pilot Electric Mfg. (ID = 2499438) Radio AC Midget ; Pilot Electric Mfg. (ID = 2499440) Radio
AC Midget ; Pilot Electric Mfg. (ID = 2499441) Radio AC Midget ; Pilot Electric Mfg. (ID = 2499442) Radio
AC Midget ; Pilot Electric Mfg. (ID = 2499443) Radio
Use red slider bar for more.
AC Midget ; Pilot Electric Mfg. (ID = 1143242) Radio
Pilot Electric Mfg.: AC Midget [Radio] ID = 1143242 502x533
Select picture or schematic to display from thumbnails on the right and click for download.

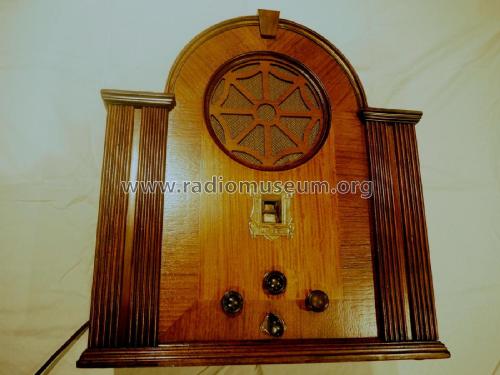

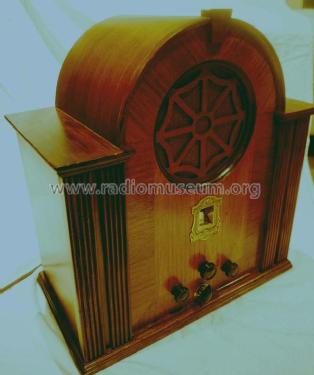

For model AC Midget 2nd type, Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY):
Image Courtesy of Mark V. Stein for Radiomuseum.org use only.

Country:  United States of America (USA)
Manufacturer / Brand:  Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
alternative name

Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 24 24 24 27 45 80
Main principle TRF without regeneration; Screengrid 1926-1935
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 or 230 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: AC Midget [2nd type] - Pilot Electric Mfg. Co. Radio
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Notes [3331454B]
External source of data E. Erb 3-907007-36-0

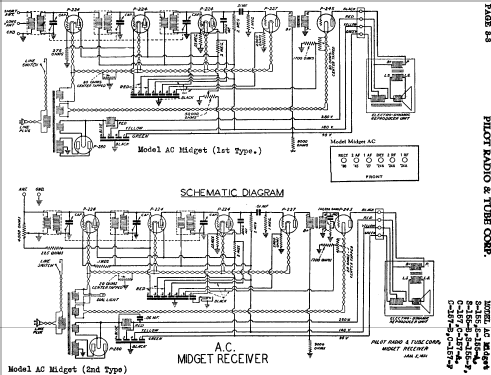

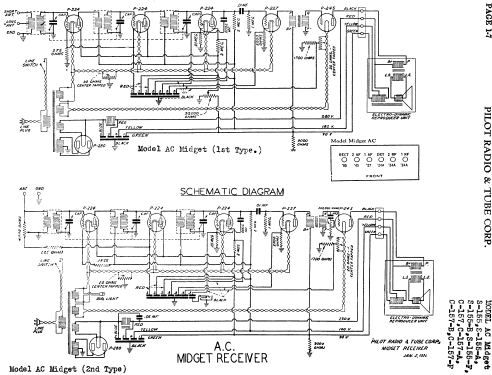

Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in Machine Age to Jet Age II
Literature/Schematics (1) Rider's Perpetual, Volume 3 = 1933 and before
Literature/Schematics (2) Cathedral & Tombstone Radios (page 200.)
