• Country
• United States of America (USA)

• Manufacturer / Brand
• Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)

• Year
• 1953 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 207286

• • alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12AX7 12AX7 12AT7 6X4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

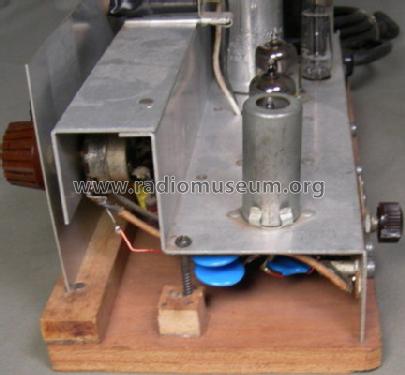

• Model: Pilotone PA-912 - Pilot Electric Mfg. Co. Radio

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 11.25 x 5.25 x 5.25 inch / 286 x 133 x 133 mm

• Notes

• Pilot model PA-912 is an AC operated 7 channel pre-amplifier. Preamplifier, mono, with detachable front panel plate (Hammertone Bronze Finish). Bass and Treble Control.

• Net weight (2.2 lb = 1 kg)
• 6.5 lb (6 lb 8 oz) / 2.951 kg

• Price in first year of sale
• 50.00 $

• Source of data
• -- Original prospect or advert

• Literature/Schematics (3)
• Photofact Folder, Howard W. SAMS (Set 223, folder 10, datet 12-53)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
