• Country
• United States of America (USA)

• Manufacturer / Brand
• Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)

• Year
• 1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 207288

• • alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6BA6 6U8 6BA6 6AU6 6AL5 12AU7 6AB4 6X5GT

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

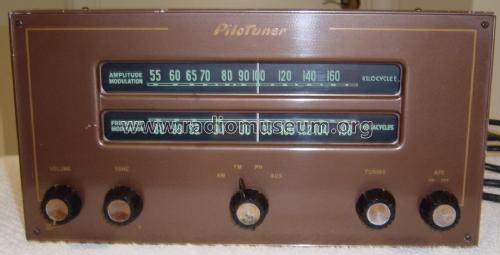

• Model: Pilotuner AF-723 - Pilot Electric Mfg. Co. Radio

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 14.25 x 7.5 x 8.5 inch / 362 x 191 x 216 mm

• Notes

• See tubes for the first possible year of market introduction, for instance of the 6U8.

  Pilot Pilotuner AF-723 is a High Fidelity FM-AM Tuner.
  Sensitivity:
  FM - 10 µV for 20 dB quieting
  AM - 10 µV for 0.1 V rms audio output
  Hum level: 70 dB below 1 V
  Audio output impedance: 500 ohms, cathode follower.

  See also PilotunerAF-723U

• Net weight (2.2 lb = 1 kg)
• 15 lb (15 lb 0 oz) / 6.810 kg

• Price in first year of sale
• 80.00 $

• Source of data
• -- Original prospect or advert

• Literature/Schematics (4)
• -- Schematic

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
