For model T-500 Series, Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY):
Sams Photofact Folders

Country:  United States of America (USA)
Manufacturer / Brand:  Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
alternative name

Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7GT 12SK7GT 12SQ7GT 50L6GT 35Z5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 105 - 120 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 4.1 inch = 10.4 cm
Power out
from Radiomuseum.org Model: T-500 Series - Pilot Electric Mfg. Co. Radio
Shape Tablemodel, with any shape - general.
Notes The Pilot model T-500 Series is an AC-DC Operated Two Band Superheterodyne Receiver.
External source of data Ernst Erb

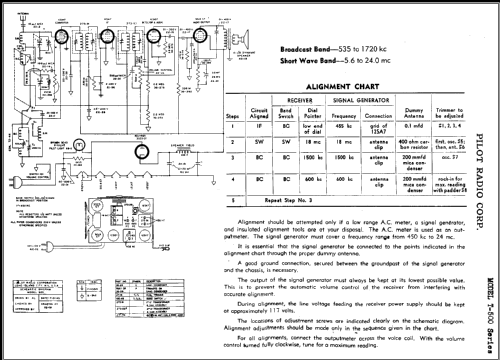

Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before

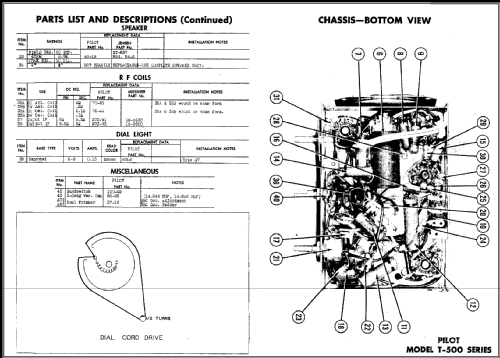

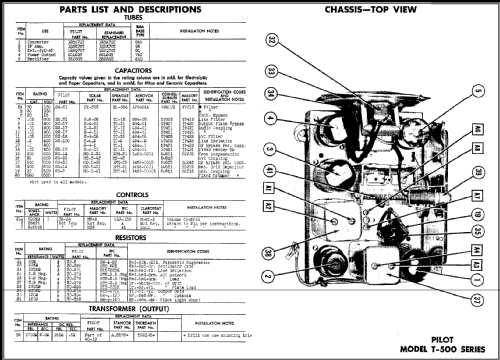

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date: Jan 1947, Set 12, Folder 472-23)
