Pilotuner T-601A

Pilotuner T-601A; Pilot Electric Mfg. (ID = 166657) Radio

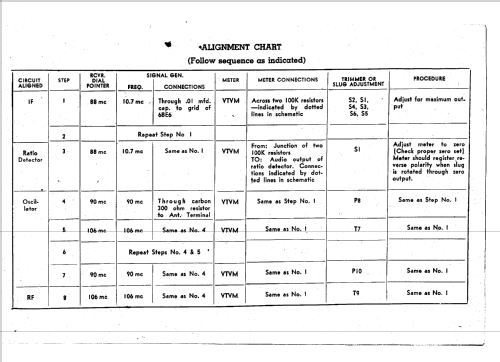

Pilotuner T-601A; Pilot Electric Mfg. (ID = 284057) Radio

Pilotuner T-601A; Pilot Electric Mfg. (ID = 284051) Radio

Pilotuner T-601A; Pilot Electric Mfg. (ID = 284052) Radio

Pilotuner T-601A; Pilot Electric Mfg. (ID = 284053) Radio

Pilotuner T-601A; Pilot Electric Mfg. (ID = 284054) Radio

Pilotuner T-601A; Pilot Electric Mfg. (ID = 284056) Radio

Pilotuner T-601A; Pilot Electric Mfg. (ID = 284050) Radio
Pilotuner T-601A; Pilot Electric Mfg. (ID = 2055335) Radio Pilotuner T-601A; Pilot Electric Mfg. (ID = 2055336) Radio
Pilotuner T-601A; Pilot Electric Mfg. (ID = 154211) Radio Pilotuner T-601A; Pilot Electric Mfg. (ID = 154018) Radio
Pilotuner T-601A; Pilot Electric Mfg. (ID = 154214) Radio Pilotuner T-601A; Pilot Electric Mfg. (ID = 154014) Radio
Pilotuner T-601A; Pilot Electric Mfg. (ID = 154017) Radio Pilotuner T-601A; Pilot Electric Mfg. (ID = 154016) Radio
Pilotuner T-601A; Pilot Electric Mfg. (ID = 154019) Radio Pilotuner T-601A; Pilot Electric Mfg. (ID = 722992) Radio
Use red slider bar for more.
Pilotuner T-601A; Pilot Electric Mfg. (ID = 2055335) Radio
Pilot Electric Mfg.: Pilotuner T-601A [Radio] ID = 2055335 1400x1228
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pilotuner T-601A, Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY):
Case has been refinished

Country:  United States of America (USA)
Manufacturer / Brand:  Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
alternative name

Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6BA6 6BE6 6BA6 6BA6 6AL5
Main principle Superhet with RF-stage; ZF/IF 10700 kHz
Tuned circuits 9 FM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 100-125 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Pilotuner T-601A - Pilot Electric Mfg. Co. Radio
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 220 x 170 x 150 mm / 8.7 x 6.7 x 5.9 inch
Notes

Einer der ersten UKW Tuner im 3m Band 1947 nach der Freigabe des Bandes durch die FCC USA. Variante mit symm.Ratiodetektor.

Siehe auch/see also Pilotuner T-601 with unsymmetrical ratio detector.

Price in first year of sale 29.95 USD
Source of data -- Original-techn. papers.
Mentioned in Radio Retailing (Radio & Television R.) (July 1947 page 128.)
Literature/Schematics (1) Machine Age to Jet Age II (page 225.)

Model page created by Hans M. Knoll. See "Data change" for further contributors.
