• Country
• United States of America (USA)

• Manufacturer / Brand
• Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 52056

• • alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6SB7Y 6SG7 6SG7 6H6 6SJ7 25L6GT 25Z6GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 105 - 125; 220 - 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

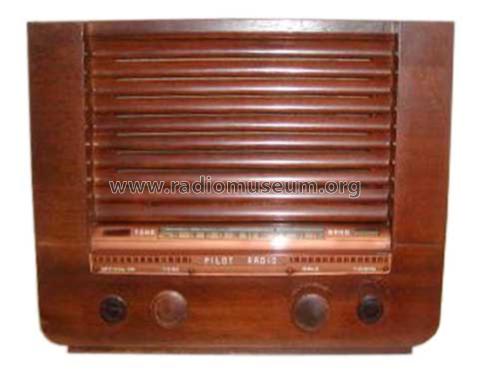

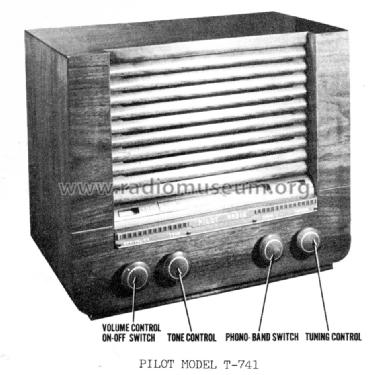

• Model: T-741 - Pilot Electric Mfg. Co. Radio

• Shape
• Tablemodel, with any shape - general.

• Notes
• Frequency Ranges:
  BC band - 535 to 1630 kc
  SW1 - 2.45 to 7.65 mc
  SW2 - 7.35 to 22.5 mc
  SW3 - 9.46 to 9.74 mc
  SW4 - 11.53 to 12.12 mc


• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

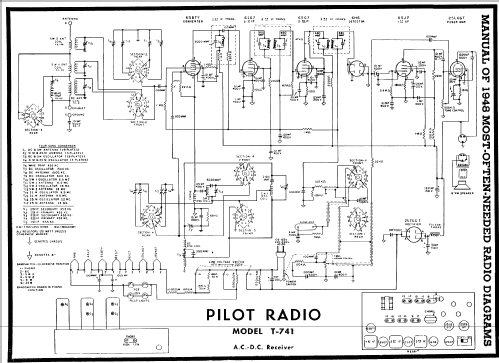

• Circuit diagram reference
• Rider's Perpetual, Volume 17 = 1948 and before

• Mentioned in
• Guide to Old Radios (Beitman Radio Diagrams 1948)

• Literature/Schematics (1)

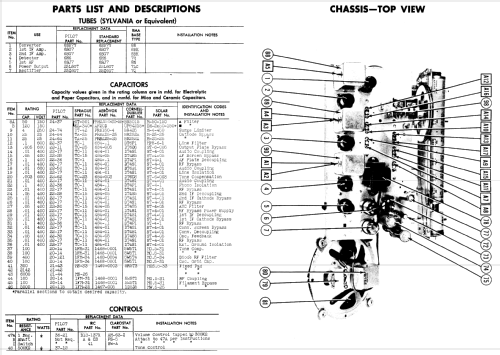

• Photofact Folder, Howard W. SAMS (Set 37, Folder 18)
