• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1974–1977

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 249142

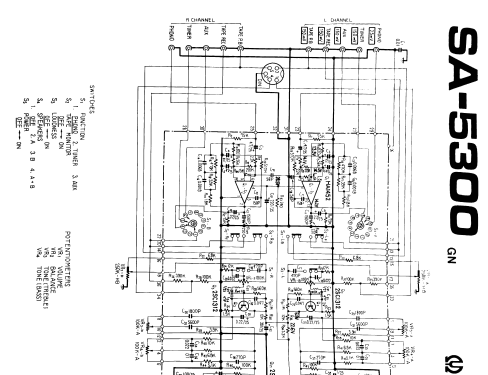

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220; 110/120/130/220/240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org

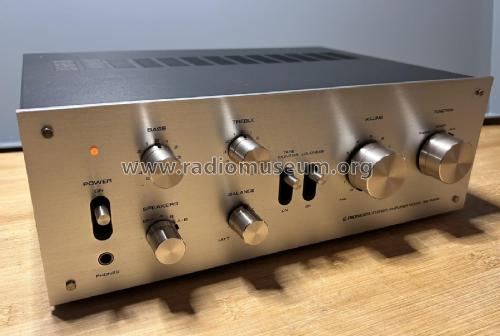

• Model: Stereo Amplifier SA-5300 - Pioneer Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 350 x 125 x 282 mm / 13.8 x 4.9 x 11.1 inch

• Notes

• A hi-fi stereo amplifier housed in a metal case with continuous power output of 10 watts per channel min. RMS into 8Ω, 40Hz — 20,000Hz, with no more than 0.8% total harmonic distortion. Terminals for two pairs of loudspeakers (A, B), jack for headphones.

  Specification
  Continuous Power Output (Both channels driven)
  40Hz — 20kHz	10W + 10W into 8Ω 10W + 10W into 4Ω
  1kHz	12W + 12W into 8Ω 14W + 14W into 4Ω
  THD (40Hz — 20kHz) (Continuous Power Output) (1W Power Output, 8Ω)	< 0.8% < 0.3%
  Intermodulation Distortion (Continuous Power Output) (1W Power Output, 8Ω)	< 0.8% < 0.3%
  Power Bandwidth (IHF, Both channels driven)	15Hz — 100kHz (THD 0.8%)
  Output: Speakers	A, B (4Ω — 16Ω) A + B (8Ω — 16Ω)
  Headphone	4Ω — 16Ω
  Damping Factor (40Hz — 20kHz, 8Ω)	> 30
  Inputs Sensitivity/Impedance
  PHONO  TUNER  AUX  TAPE PB  TAPE PB (DIN connector)	2.5mV/50kΩ 150mV/50kΩ 150mV/50kΩ 150mV/50kΩ 150mV/50kΩ
  Outputs Level/Impedance
  TAPE REC  TAPE REC (DIN connector)	150mV 30mV/80kΩ
  Frequency Response
  PHONO (RIAA equalization)  TUNER, AUX, TAPE PB	30Hz — 15kHz ±0.5dB 20Hz — 30kHz +0.5dB,-1dB
  Hum & Noise (IHF, Short circuited, A Network)
  PHONO  TUNER, AUX, TAPE PB	> 70dB > 85dB

  Semiconductors: 1 IC, 16 Transistors, 8 Diodes

  Versions/Power requirements
  GN  /  220V AC 50Hz
  FV  /  110/120/130/220/240V AC 50/60Hz with voltage selector

  Power consumption:  85 watts

• Net weight (2.2 lb = 1 kg)
• 6.4 kg / 14 lb 1.6 oz (14.097 lb)

• Mentioned in
• - - Manufacturers Literature (1976-1977 Pioneer Hi-Fi Stereo catalogue)

• Literature/Schematics (1)
• - - Manufacturers Literature (Service manual Pioneer SA-5300 dated Dec 1974)

• Author
• Model page created by Bartosz Szwed. See "Data change" for further contributors.
