Stereo Amplifier SA-5800

Pioneer Corporation; Tokyo

Datos
Foro
Imágenes
Colecciones

  • Año
  • 1979/1980
  • Categoría
  • Amplificador de audio o mezclador
  • Radiomuseum.org ID
  • 334162

 Especificaciones técnicas

  • Numero de transistores
  • 21
  • Semiconductores
  • Principio principal
  • Amplificador de Audio
  • Gama de ondas
  • - no hay
  • Especialidades
  • Hi-Fi equipment
  • Tensión de funcionamiento
  • Red: Corriente alterna (CA, Inglés = AC) / 120 Volt
  • Altavoz
  • - Este modelo usa altavoz exterior (1 o más).
  • Potencia de salida
  • 50 W (undistorted)
  • Material
  • Madera
  • de Radiomuseum.org
  • Modelo: Stereo Amplifier SA-5800 - Pioneer Corporation; Tokyo
  • Forma
  • Unidad para estanteria.
  • Ancho, altura, profundidad
  • 451 x 151 x 271 mm / 17.8 x 5.9 x 10.7 inch
  • Anotaciones

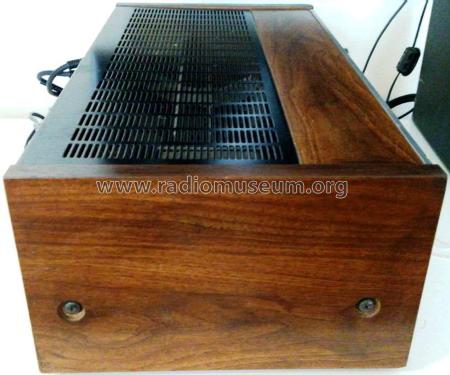

  • A hi-fi stereo integrated amplifier housed in a wooden case with continuous power output of 2 x 25 watts into 8 ohms. With a fluorescent power meter display, Function selector switch (Tuner, Phono, Aux), Loudspeaker selector (A, B, A+B), Loudness and Subsonic filter switches, rotary controls for Volume, Bass, Treble and Balance, Tape Monitor switches (1,2), and a jack for headphones. On the back, RCA phono sockets for input Phono, Tuner and Aux and for input/output Tape1 and Tape2, terminals for two pair of loudspeakers and 3 AC outlets.

    Specification
    Amplifier Section
    Continuous Power output: 25 watts per channel into 8Ω
    from 20Hz to 20kHz
    with no more than 0.03% THD
    25 watts per channel into 4Ω
    from 20Hz to 20kHz
    with no more than 0.05% THD
    lntermodulation Distortion
     8Ω from AUX    		 No more than 0.03%
    Output
     Speaker
     Headphones    		 A, B, A+B  4-16Ω
    Low impedance
    Damping Factor (1kHz, 8Ω) 30
    Input (Sensitivity/Impedance)
     PHONO
     TUNER
     AUX
     TAPE PLAY 1
     TAPE PLAY 2    		 2.5mV/47kΩ
    150mV/50kΩ
    150mV/50kΩ
    150mV/50kΩ
    150mV/50kΩ
    Output
     TAPE REC 1
     TAPE REC 2    		 150mV
    150mV
    Frequency Response
     PHONO (RIAA Equalization)
     TUNER, AUX, TAPE PLAY    		 30Hz-15kHz ±0.5dB
    20Hz-40kHz ±2dB
    Hum and Noise
    (IHF, short-circuited, A network)
     PHONO
     TUNER, AUX, TAPE PLAY    		 76dB
    98dB

    Semiconductors: 3 ICs, 21 Transistors, 18 Diodes

    Versions/Power requirements
    KU USA model       /  120V AC 60Hz
    KC Canada model  /  120V AC 60Hz

    Power consumption:  75 watts

    Same as the Pioneer SA-508 Stereo Amplifier which is housed in a metal case.

  • Peso neto
  • 7.3 kg / 16 lb 1.3 oz (16.079 lb)
  • Mencionado en
  • - - Manufacturers Literature (1980 Pioneer Stereo Components catalogue)
  • Documentación / Esquemas (1)
  • - - Manufacturers Literature (Service Manual Pioneer SA-5800 SA-508 dated May 1979)
