• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98861

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• 6CW4 6AQ8 6BA6 6BA6 6R-E13 6BA6 6BA6 6BE6 6AQ8 6CG7 6AQ8 6AV6 12AX7 12AX7 12AX7 6AN8 6AN8 7868 7868 7868 7868

• Main principle
• Superhet with RF-stage

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 100; 117 or 115; 230 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

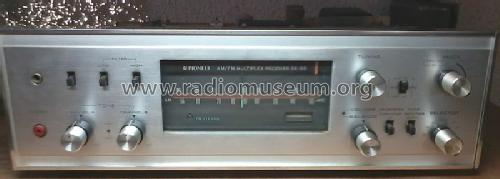

• Model: Stereo Receiver SX-110 - Pioneer Corporation; Tokyo

• Shape
• Book-shelf unit.

• Source of data
• -- Schematic

• Author
• Model page created by Omer Suleimanagich. See "Data change" for further contributors.
