• Country
• France

• Manufacturer / Brand
• Pizon Bros (JMP); Paris

• Year
• 1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 163433

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF134 AF125 AF105 AF105 AF105 AC122 AC122 AC117 AC117 AA112 AA112 AA112

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 0.6 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Translitor 1150FM - Pizon Bros JMP; Paris

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 160 x 80 mm / 11 x 6.3 x 3.1 inch

• Notes

• 9 transistors + 5 diodes, dont une varicap. Clavier 4 touches dont tonalité. Antenne ferrite et antenne télescopique incorporées. Prise HP extérieur et antenne-voiture.

  ---

  1150FM is a medium range receiver, with a chassis made in Germany and speaker which seems Japanese. The sound quality is quite poor with no bass. The sensitivity is however good.

  This set does not compare well with previous Pizon Bros receivers. It is basically a relabeled ITT product, see Schaub-Lorenz Polo T60L.

• Net weight (2.2 lb = 1 kg)
• 1.6 kg / 3 lb 8.4 oz (3.524 lb)

• Price in first year of sale
• 3,995.00 BFR

• Literature/Schematics (1)

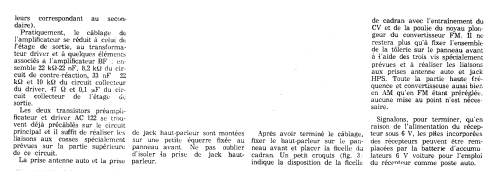

• Radio Constructeur et Dépanneur (Juillet 1965)

• Author
• Model page created by Serge Laffont. See "Data change" for further contributors.
