Translitor 1500FM

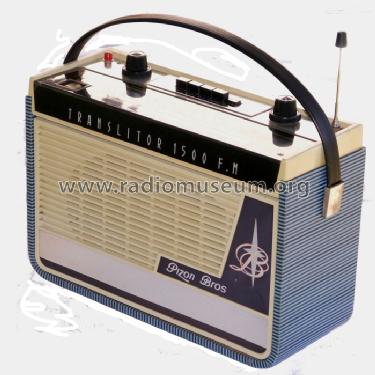

Translitor 1500FM; Pizon Bros JMP; (ID = 2020367) Radio

Translitor 1500FM; Pizon Bros JMP; (ID = 2150925) Radio

Translitor 1500FM; Pizon Bros JMP; (ID = 2150926) Radio

Translitor 1500FM; Pizon Bros JMP; (ID = 2150927) Radio
Translitor 1500FM; Pizon Bros JMP; (ID = 638636) Radio Translitor 1500FM; Pizon Bros JMP; (ID = 638635) Radio
Translitor 1500FM; Pizon Bros JMP; (ID = 638634) Radio Translitor 1500FM; Pizon Bros JMP; (ID = 638638) Radio
Translitor 1500FM; Pizon Bros JMP; (ID = 638639) Radio Translitor 1500FM; Pizon Bros JMP; (ID = 768450) Radio
Translitor 1500FM; Pizon Bros JMP; (ID = 768451) Radio Translitor 1500FM; Pizon Bros JMP; (ID = 2150845) Radio
Use red slider bar for more.
Translitor 1500FM; Pizon Bros JMP; (ID = 638636) Radio
Pizon Bros JMP;: Translitor 1500FM [Radio] ID = 638636 783x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Translitor 1500FM, Pizon Bros (JMP); Paris

Country:  France
Manufacturer / Brand:  Pizon Bros (JMP); Paris
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF114 AF115 AF116 AF116 AF114 OC71 OC75 OC74 OC74 SFD107 SFD112 SFD107 SFD115 SFD115
Main principle Superheterodyne (common); ZF/IF 480/10700 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 1 x 9 or 6 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.4 W (max.)
from Radiomuseum.org Model: Translitor 1500FM - Pizon Bros JMP; Paris
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 300 x 200 x 100 mm / 11.8 x 7.9 x 3.9 inch
Notes

3 gammes d'ondes : OM de 187 à 570 m, OL de 1000 à 2000 m, FM de 87 à 100 MHz. HP elliptique de 16 x 24 cm, Z = 50 ohms. Contrôle de l'accord par "Radioactor". Prises d'entrée pour pick-up et antenne, sortie de magnétophone et HP supplémentaire.

Alimentation par pile spécial 9 volts (Cipel 1480, Wonder Valma, Leclanché 6RL) ou 6 piles torches standard.

Coffret bois gainé. Housse pour 26 Fr.


S-meter "Radicator". Inputs for pick-up and external antenna, outputs for tape recorder and loudspeaker.

Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Price in first year of sale 599.00 FRF
Mentioned in Catalogue Comptoir TSF Sud-Est 1963
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Serge Laffont. See "Data change" for further contributors.
