- Country
- France
- Manufacturer / Brand
- Point Bleu; Paris - voir aussi Blaupunkt (D)
- Year
- 1951–1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 68494
site d' annonces
by courtesy of owner
by courtesy of owner
by courtesy of owner

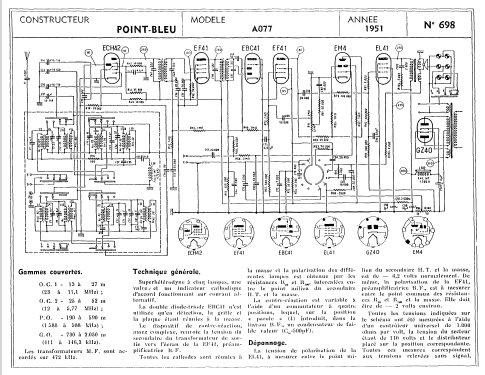

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 472 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: A077 - Point Bleu; Paris - voir aussi
- Shape
- Tablemodel, low profile (big size).
- Notes
-
4 gammes d'ondes : OC1 de 13 à 27 m, OC2 de 25 à 52 m, PO de 190 à 590 m, GO de 730 à 2050 m. Contre-réaction.
Supplément 25 périodes, 800 Fr.
- Price in first year of sale
- 38,800.00 FRF
- External source of data
- Serge Laffont/Martin Renoth
- Mentioned in
- Schémathèque Éditions Radio (SER) (No. 698)
- Literature/Schematics (1)
- - - Manufacturers Literature (Tarif 15.10.1953)
