Ivolga {Иволга} 66

Ivolga {Иволга} 66; Industrial Union (ID = 164947) Radio
Ivolga {Иволга} 66; Industrial Union (ID = 164924) Radio Ivolga {Иволга} 66; Industrial Union (ID = 164935) Radio

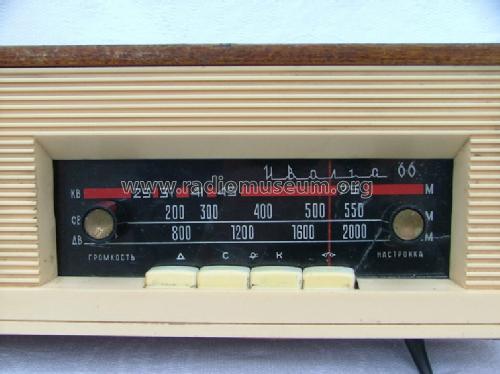

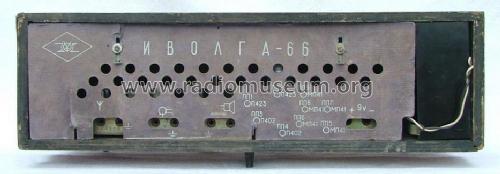

Ivolga {Иволга} 66; Industrial Union (ID = 164932) Radio Ivolga {Иволга} 66; Industrial Union (ID = 164925) Radio

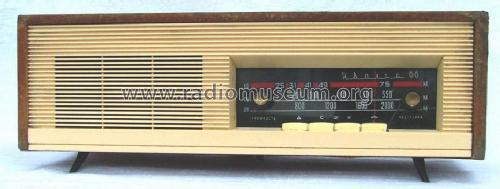

Ivolga {Иволга} 66; Industrial Union (ID = 164928) Radio
Use red slider bar for more.

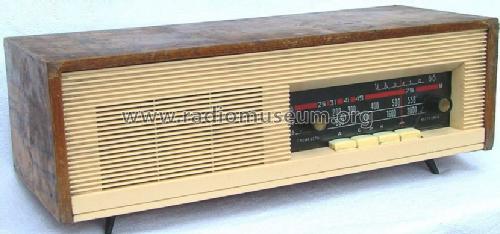

Ivolga {Иволга} 66; Industrial Union (ID = 164924) Radio
Industrial Union: Ivolga {Иволга} 66 [Radio] ID = 164924 830x389
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ivolga {Иволга} 66, Industrial Union Poliot, Cheliabinsk:
Kaunas Lithuania

Country:  Soviet Union
Manufacturer / Brand:  Industrial Union Poliot, Cheliabinsk
alternative name

Cheliabinsk Radio Works IU "Poliot"
Year: 1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Super-Heterodyne (Super in general); ZF/IF 465 kHz
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Dry Batteries / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: Ivolga {Иволга} 66 - Industrial Union Poliot,
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 345 x 170 x 190 mm / 13.6 x 6.7 x 7.5 inch
Notes Transistors: 2 x p423, 2 x p402, 5 x mp41. SW range 3.95 - 12.1 MHz.
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Source of data -- Schematic

Model page created by Zenonas Langaitis. See "Data change" for further contributors.



All listed radios etc. from Industrial Union Poliot, Cheliabinsk
Here you find 20 models, 19 with images and 12 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
