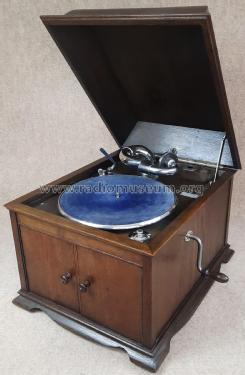

Brunswick Nr. XV (15)

Polyphonwerke AG, Leipzig u.Berlin

Data
Forum
Pictures
Collections

  • Year
  • 1928
  • Category
  • Talking machine - Mechanical Gramophone/Phonograph
  • Radiomuseum.org ID
  • 359103
    • Brand: Orplid

 Technical Specifications

  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Solar- and/or muscle driven, also addl. power jack possible
  • Loudspeaker
  • Horn
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Brunswick Nr. XV - Polyphonwerke AG, Leipzig u.
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 430 x 400 x 510 mm / 16.9 x 15.7 x 20.1 inch
  • Notes

  • Grammophon zur mechanischen Abtastung von 78 UpM Platten (Schellackplatten). Gehäuse Eiche furniert, Polydor Doppelfederwerk Nr. 55, automatischer Absteller Nr. 15, 30 cm Plattenteller, Brunswick-Glimmer Schalldose, Brunswick Tonarm Nr. 390

    Nicht zu verwechseln mit den US-Geräten der Brunswick-Balke-Collender Co. oder der British Brunswick Ltd.

  • Net weight (2.2 lb = 1 kg)
  • 16.7 kg / 36 lb 12.5 oz (36.784 lb)
  • Mentioned in
  • - - Manufacturers Literature (Katalog Polyphonwerke 1928/29)
  • Author
  • Model page created by Nico Jacobsen. See "Data change" for further contributors.
