Polyphon Koffer Nr. 17

Polyphonwerke AG, Leipzig u.Berlin

Data
Forum
Pictures
Collections

  • Year
  • 1928
  • Category
  • Talking machine - Mechanical Gramophone/Phonograph
  • Radiomuseum.org ID
  • 362472
    • Brand: Orplid

 Technical Specifications

  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Solar- and/or muscle driven, also addl. power jack possible
  • Loudspeaker
  • Horn
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Polyphon Koffer Nr. 17 - Polyphonwerke AG, Leipzig u.
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 285 x 155 x 355 mm / 11.2 x 6.1 x 14 inch
  • Notes

  • Mechanisches Grammophon im Koffer mit braunem Kunstlederbezug, im Deckel Fach für den Plattentransport.

    Motor: Einfeder-Schneckenwerk Polydor 25, Gangdauer 4 1/2 Minuten
    Schalldose: Polydor-Alum mit Nickelkappe
    Plattenteller: 22 cm Durchmesser, mit vernickeltem Rand und Plüschbezug
    Tonarm: Schlangentonarm Nr. 425

  • Net weight (2.2 lb = 1 kg)
  • 5.5 kg / 12 lb 1.8 oz (12.115 lb)
  • Mentioned in

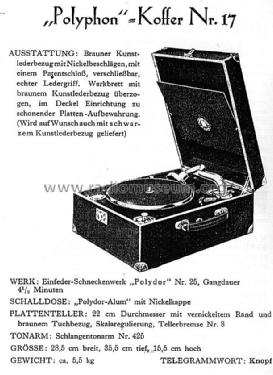

  • -- Original prospect or advert (Katalog Polyphonwerke 1928/29)
  • Author
  • Model page created by Nico Jacobsen. See "Data change" for further contributors.
