P717; Pope Radio - S.I.P.A (ID = 2218938) Radio

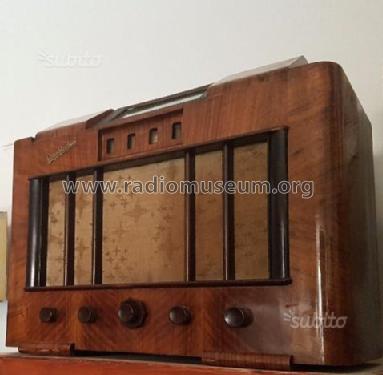

Pope Radio - S.I.P.A: P717 [Radio] ID = 2218938 553x468

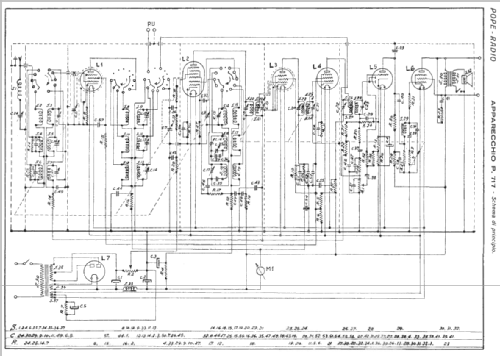

Select picture or schematic to display from thumbnails on the right and click for download.
For model P717, Pope Radio - S.I.P.A.R. Milano:
..subito.it/hobby-collezionismo/radio-a-valvole-pope-del-1936-da-museo-trapani-215892642.htm

Country:  Italy
Manufacturer / Brand:  Pope Radio - S.I.P.A.R. Milano
Brand

SIPAR
Year: 1938 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: AF3 AK1 or WE21 AF3 AF2 or WE25 AB1 or WE37 L496D or WE30 G4200
Main principle Superheterodyne (common)
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: P717 - Pope Radio - S.I.P.A.R. Milano
Material Wooden case
Shape Tablemodel, low profile (big size).

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Pope Radio - S.I.P.A.R. Milano
Here you find 23 models, 18 with images and 8 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
