Super P47A

Super P47A; Pope Radio - S.I.P.A (ID = 662019) Radio
Super P47A; Pope Radio - S.I.P.A (ID = 310800) Radio
Use red slider bar for more.
Super P47A; Pope Radio - S.I.P.A (ID = 310800) Radio
Pope Radio - S.I.P.A: Super P47A [Radio] ID = 310800 379x537

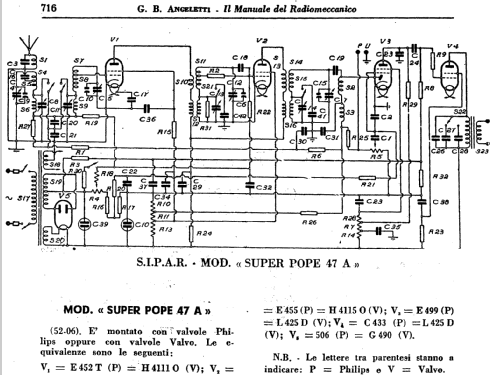

Select picture or schematic to display from thumbnails on the right and click for download.
For model Super P47A, Pope Radio - S.I.P.A.R. Milano

Country:  Italy
Manufacturer / Brand:  Pope Radio - S.I.P.A.R. Milano
Brand

SIPAR
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: E452T E455 E499 C453 506
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker -Loudspeaker incorporated, but system not known.
Power out
from Radiomuseum.org Model: Super P47A - Pope Radio - S.I.P.A.R. Milano
Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Notes Circuito superinduttanza. Anche in versione Lusso.
4 super-inductance circuits. AVC. Phono input and speaker output. 200 to 2000 m tuning. Also sold in "Lusso" (luxury) version.
Price in first year of sale 1'895.00 ITL
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in Guida Pratica Antique Radio II (2000) (anche in Errata corrige al vol. I)

Model page created by Emilio Ciardiello. See "Data change" for further contributors.



All listed radios etc. from Pope Radio - S.I.P.A.R. Milano
Here you find 23 models, 18 with images and 8 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
