Super Pope P87A
Use red slider bar for more.
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
SIPAR | ||||
|---|---|---|---|---|---|
| Year: 1936 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: WE21 WE25 WE26 WE30 WE51 |
| Main principle | Superheterodyne (common); ZF/IF 468 kHz |
|---|---|
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) |
| Loudspeaker | -Loudspeaker incorporated, but system not known. |
| Power out | |
| from Radiomuseum.org | Model: Super Pope P87A - Pope Radio - S.I.P.A.R. Milano |
| Notes | Prodotta su brevetti Philips (stesso chassis delle Philips 428A, 653M e 651M). |

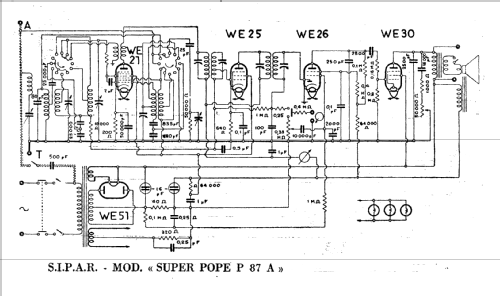

| Source of data | -- Schematic |
Model page created by Alessandro De Poi. See "Data change" for further contributors.
