• Year
  • 1955
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 70994

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 15 cm = 5.9 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

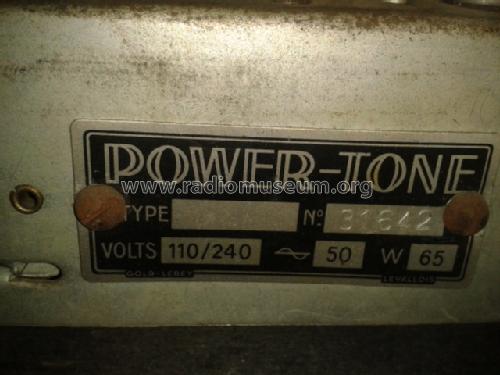

  • Model: 544 - Power-Tone; Paris
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 400 x 245 x 180 mm / 15.7 x 9.6 x 7.1 inch
  • Net weight (2.2 lb = 1 kg)
  • 7 kg / 15 lb 6.7 oz (15.419 lb)
  • External source of data
  • Serge Laffont/Martin Renoth
  • Source of data
  • -- Schematic
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
