Inconnu - Unknown 1
Power-Tone; Paris
- Country
- France
- Manufacturer / Brand
- Power-Tone; Paris
- Year
- 1958 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 278329

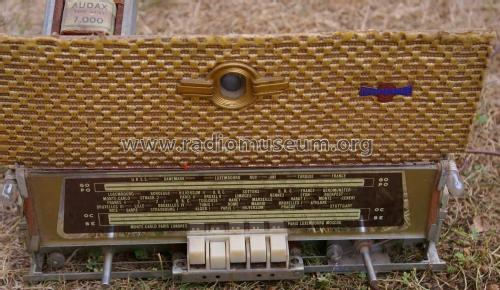

POWER-TONE #42753 VUE DE FACE 1
POWER-TONE #42753 VUE DE FACE 2
VUE DU LOGO SUR LE TISSUS DE LA FACE AVANT
POWER-TONE #42753 VUE DE L’ARRIÈRE.

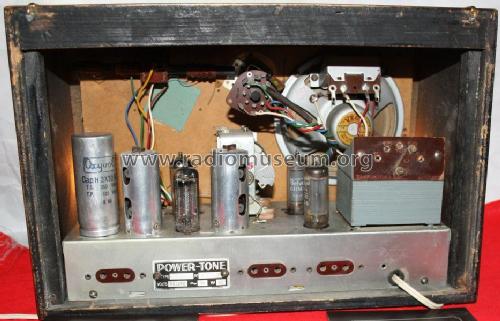

Vue de l´intérieur RADIO POWER-TONE J.T.
Vue chassis (original) RADIO POWER-TONE
RADIO POWER-TONE
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 480 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
- Power out
- 1.4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Inconnu - Unknown 1 - Power-Tone; Paris
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 450 x 350 x 250 mm / 17.7 x 13.8 x 9.8 inch
- Notes
-
Radio à 4 bandes, dont une Ondes Courtes en bande étalée.
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Author
- Model page created by Jean-Pierre Ambroise. See "Data change" for further contributors.
