Signal Generator E200
Precision Apparatus Co. (Pacotronics); Brooklyn - Elmhurst - Glendale, NY / Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Precision Apparatus Co. (Pacotronics); Brooklyn - Elmhurst - Glendale, NY / Chicago, IL
- Year
- 1940
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 81275
Click on the schematic thumbnail to request the schematic as a free document.

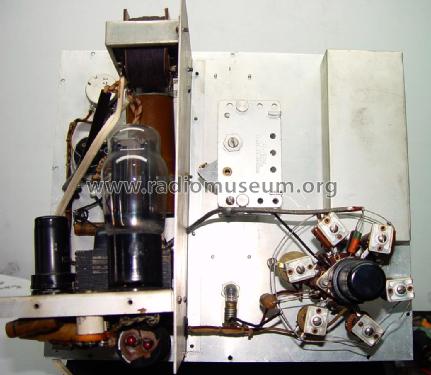

- Number of Tubes
- 3
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Signal Generator E200 - Precision Apparatus Co.
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 310 x 270 x 155 mm / 12.2 x 10.6 x 6.1 inch
- Notes
- Signal Marking Generator:A:88-250 kc (Khz); B:220-600 kc. C:550-1.700 kc. D:1'5-5 mc (Mhz); E: 3'8-10 mc. F:7'5-22 mc and F(2):15-44 mc. See also the version E-200-C - in this form and later forms - and see company description. There are also models with the tube 6AU6 instead of the 6SJ7.
- Net weight (2.2 lb = 1 kg)
- 4 kg / 8 lb 13 oz (8.811 lb)
- Author
- Model page created by Juan Antonio Pardo-Alonso. See "Data change" for further contributors.
