• Year
  • 1947
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 152993

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110-120 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Wooden case
  • from Radiomuseum.org

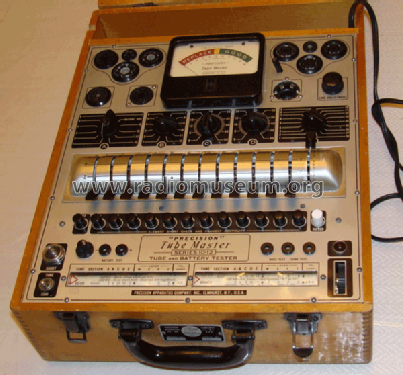

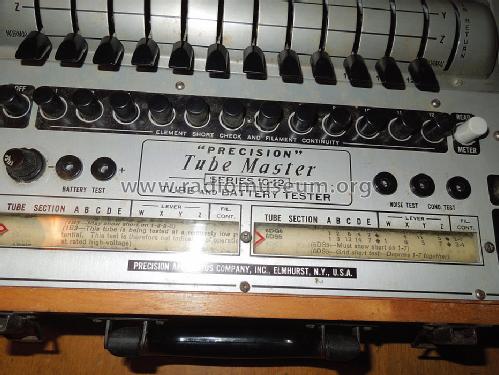

  • Model: Tube Master 10-12 - Precision Apparatus Co.
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 14 x 7 x 18 inch / 356 x 178 x 457 mm
  • Notes
  • The Series 10-12 Electronamic Tube-Master is simple push button, master-lever type operated Vacuum tube and battery tester, incorporating the Electronamic Master tube testing circuit, designed by Precision engineers to indicate the overall performance merit of a vacuum tube in only one direct meter reading.
  • Net weight (2.2 lb = 1 kg)
  • 6.4 kg / 14 lb 1.6 oz (14.097 lb)
  • Source of data
  • - - Manufacturers Literature
  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Ashis Mukerjea. See "Data change" for further contributors.
