Digital Multimeter MS8200C

Digital Multimeter MS8200C; Precision Mastech (ID = 2207815) Equipment

Digital Multimeter MS8200C; Precision Mastech (ID = 2207816) Equipment

Digital Multimeter MS8200C; Precision Mastech (ID = 2207817) Equipment

Digital Multimeter MS8200C; Precision Mastech (ID = 2207818) Equipment

Digital Multimeter MS8200C; Precision Mastech (ID = 2207819) Equipment

Digital Multimeter MS8200C; Precision Mastech (ID = 2207820) Equipment

Digital Multimeter MS8200C; Precision Mastech (ID = 2207821) Equipment

Digital Multimeter MS8200C; Precision Mastech (ID = 2207822) Equipment

Digital Multimeter MS8200C; Precision Mastech (ID = 2207823) Equipment
Digital Multimeter MS8200C; Precision Mastech (ID = 2207824) Equipment
Use red slider bar for more.
Digital Multimeter MS8200C; Precision Mastech (ID = 2207824) Equipment
Precision Mastech: Digital Multimeter MS8200C [Equipment] ID = 2207824 704x1500
Select picture or schematic to display from thumbnails on the right and click for download.
For model Digital Multimeter MS8200C, Precision Mastech Enterprises Co., Ltd.; Hong Kong:
eBay 1793452726 bravco

Country:  Hong Kong
Manufacturer / Brand:  Precision Mastech Enterprises Co., Ltd.; Hong Kong
Year: 2000 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 2: 2SC9013 2SC9013 CD4011 LM358 TL082 ICL7106 1N4148 1N4004
Wave bands - without
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Digital Multimeter MS8200C - Precision Mastech Enterprises
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 82 x 36 x 191 mm / 3.2 x 1.4 x 7.5 inch
Notes

Display type HMJ820610P2

Net weight (2.2 lb = 1 kg) 0.280 kg / 0 lb 9.9 oz (0.617 lb)

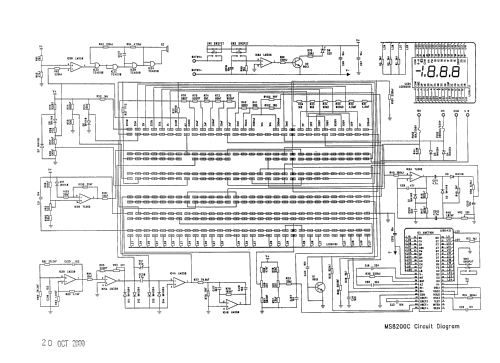

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.



All listed radios etc. from Precision Mastech Enterprises Co., Ltd.; Hong Kong
Here you find 6 models, 6 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
