All Dry Portable Radio Kit

Premier Radio Co. Ltd.; London

  • Year
  • 1955 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 168189

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Dry Batteries / 1.5 & 90 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: All Dry Portable Radio Kit - Premier Radio Co. Ltd.; London
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 11.5 x 10 x 5.75 inch / 292 x 254 x 146 mm
  • Notes

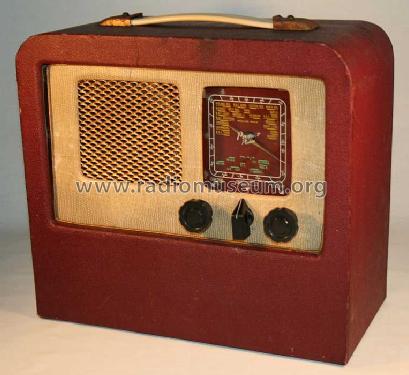

  • Colour Wine with grey panel or Blue with grey panel. Cost £7. 8s. 0d. in Jan 1956.
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.
