WR-160

Profitronic (Marke), Escom AG; Bochum

Data
Forum
Pictures
Collections

  • Year
  • 1993
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 230223

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Batteries / addl. power jack / 4 x 1,5 / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: WR-160 - Profitronic Marke, Escom AG;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 175 x 112 x 37 mm / 6.9 x 4.4 x 1.5 inch
  • Notes

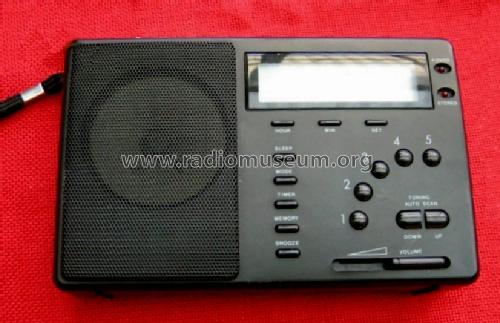

  • Travel Receiver with micro-processor based digital tuning.

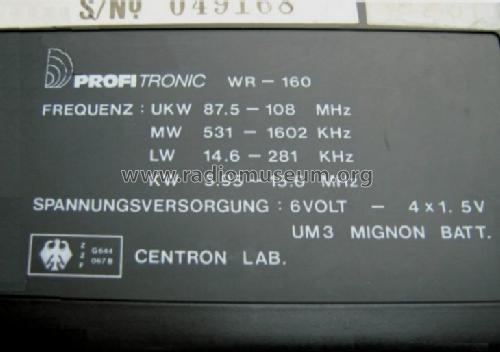

    • Frequency ranges
      • FM 87.5 - 108 MHz  ( 50 kHz intervals)
      • LW 146 - 281 kHz (1 kHz intervals)
      • MW 531 - 1602 kHz ( 9 kHz intervals)
      • SW 5.95 - 15.6 MHz ( 5 kHz intervals)
        • On shortwave only broadcast bands can be selected
          • 5.95 - 6.2 MHz (49m)
          • 7.1  -  7.3 MHz (41m)
          • 9.5  -  9.9 MHz (31m)
          • 11.65-12.05 MHz (25m)
          • 13.6 - 13.8  MHz
          • 15.1 - 15.6  MHz (19m)
      • With 5 presets for each band, a total of 20 channels can be stored
    • LCD display for frequency / daily auto turn-on / clock
    • Headphone jack.
    • Input for optional power supply adapter 6VDC
    • baugleich oder starke Ähnlichkeiten mit
      • Poppy - Global
  • Net weight (2.2 lb = 1 kg)
  • 0.440 kg / 0 lb 15.5 oz (0.969 lb)
  • Author
  • Model page created by Franz Harder. See "Data change" for further contributors.
