TA8132

Information - Help
ID = 49232

Country:
Japan
Brand: Toshiba Corporation; Tokyo
Tube type:  IC - Integrated Circuit   RF/IF-Stage
Identical to TA8132
Similar Tubes
Other characteristic (electr. data):
  TA2012

Base SPECIAL TUBEBASE in general
Description

Aufbau/internal: IC (__ Trans., __ Widerst., __ Dioden, __ Kond.);
Form/Case: DIP-24 (TA8132AN) | SSOP-24 (TA8132AF);

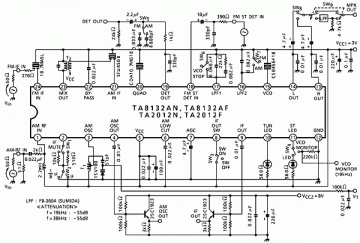

Typ/Content: AM-/FM-IF Amplifier, PLL Multiplex Decoder; for Digital Tuning Systems (DTS);
S-curve characterics FM detection: reverse;
Daten/electr.data: Vcc: 1.8...8 V; Icc: <14 mA; t op: -__...+__ °C.
-


Dimensions (WHD)
incl. pins / tip
23 x 7 x 8 mm / 0.91 x 0.28 x 0.31 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature   Toshiba

TA8132: Toshiba
Günther Stabe † 19.8.20

dip24_3.gif TA8132: TTT Steidle 1981
Günther Stabe † 19.8.20

More ...
TA8132: Toshiba
Günther Stabe † 19.8.20

Usage in Models 2= 1993? ; 1= 1993 ; 1= 1995?? ; 1= 1997

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):5
