• Country
• Spain

• Manufacturer / Brand
• Protasoni; Madrid

• Year
• 1992 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 257261

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6SS7 6SJ7 EL33 5Y3

• Number of Transistors

• Semiconductors
• 1N4148

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Power out
• 4 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org

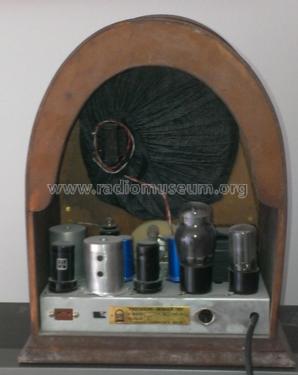

• Model: Musique 1931 - Protasoni; Madrid

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Author
• Model page created by Justo Puertas-Paule. See "Data change" for further contributors.

• Other Models

• Here you find 5 models, 5 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
