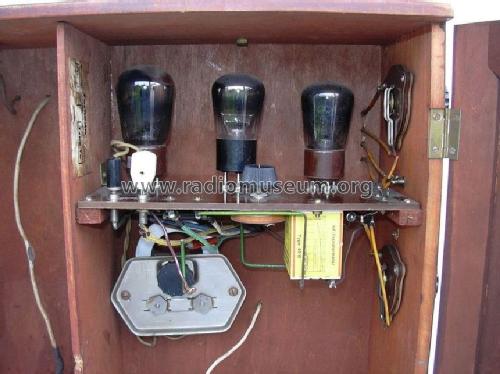

Tornado TB3/To; Protti & Spiller; (ID = 595814) Radio Tornado TB3/To; Protti & Spiller; (ID = 595815) Radio
Use red slider bar for more.

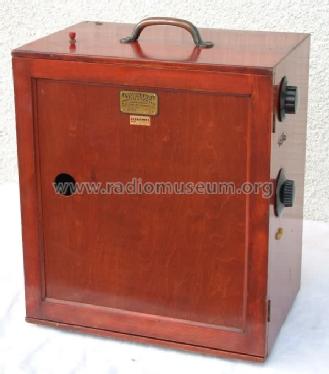

Tornado TB3/To; Protti & Spiller; (ID = 73235) Radio
Protti & Spiller;: Tornado TB3/To [Radio] ID = 73235 600x682
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tornado TB3/To, Protti & Spiller; Wien:
Protti

Country:  Austria
Manufacturer / Brand:  Protti & Spiller; Wien
Year: 1929/1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: A425 A425 B405
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker Magnetic loudspeaker (reed) of high quality (4 magnet poles).
Power out
from Radiomuseum.org Model: Tornado TB3/To - Protti & Spiller; Wien
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 380 x 440 x 240 mm / 15 x 17.3 x 9.4 inch
Notes gr. Holzkoffer
Net weight (2.2 lb = 1 kg) 4.7 kg / 10 lb 5.6 oz (10.352 lb)
Price in first year of sale 275.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in RADIO-WELT, Wien (Preis aus Radiowelt 1929 Heft 50)
Literature/Schematics (1) RADIOBOTE, Österr. (Heft 14/2008, S.7, erwähnt in Firmengeschichte)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Protti & Spiller; Wien
Here you find 8 models, 3 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
