• Country
• Spain

• Manufacturer / Brand
• Puig (Talleres Puig) (ORRADIO) (Gloria); San Sebastian

• Year
• 1954 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 269191

• Number of Tubes
• 5

• Valves / Tubes

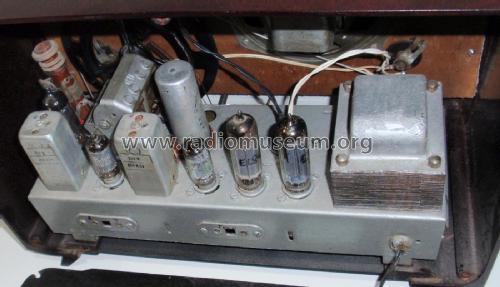

• ECH81 6BA6 6AV6 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 14 cm = 5.5 inch

• Material
• Bakelite case

• from Radiomuseum.org

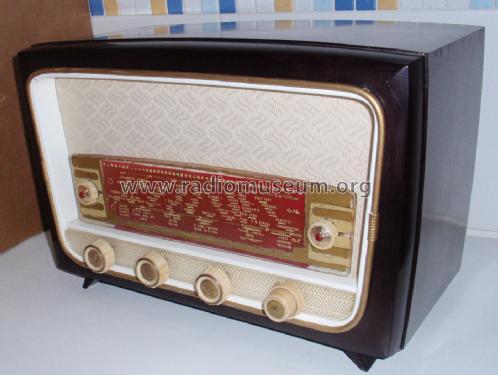

• Model: Gloria desconocido - unknown - Puig Talleres Puig ORRADIO

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 390 x 260 x 200 mm / 15.4 x 10.2 x 7.9 inch

• Net weight (2.2 lb = 1 kg)
• 5.8 kg / 12 lb 12.4 oz (12.775 lb)

• Author
• Model page created by Lucio Pedro Prieto Ramos. See "Data change" for further contributors.

• Other Models

• Here you find 1 models, 1 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
