- Country
- Great Britain (UK)
- Manufacturer / Brand
- Pye Ltd., Radio Works; Cambridge
- Year
- 1966 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 180558

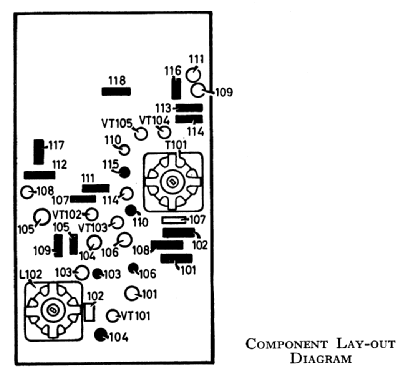

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 20
- Semiconductors
- AF102 AF115 AF115 AF116 AF116 OC71 OC45 OC45 OC45 OC45 OC71 OC71 OC71 OC71 OC44 OC44 OC82D OC82D AD140 AD140
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz; 5 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- 2 Loudspeakers
- from Radiomuseum.org
- Model: 1111 - Pye Ltd., Radio Works;
- Shape
- Tablemodel, with any shape - general.
- Notes
- Stereo table radio with socket for stereo pick-up. Incorporates a decoder for the stereo reproduction of FM stereo multiplex broadcasts. Same chassis as model 1207. Similar circuit to model 1206 but without the stereo multiplex decoder.
- Source of data
- Radio And Television Servicing books (R&TVS)
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
