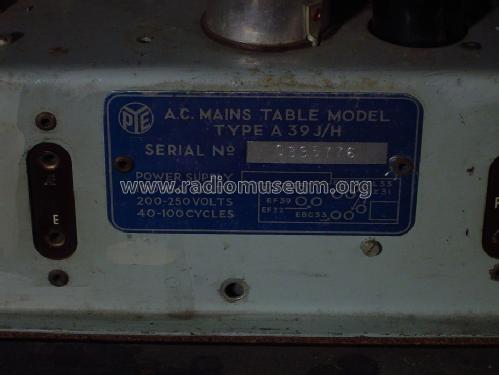

For model A39J/H, Pye Ltd., Radio Works; Cambridge

Country:  Great Britain (UK)
Manufacturer / Brand:  Pye Ltd., Radio Works; Cambridge
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner

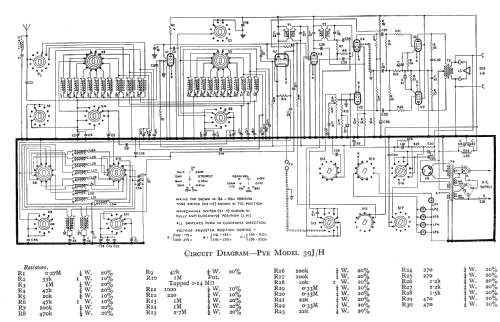

Valves / Tubes 8: EF39 ECH35 EF22 EBC33 ECC35 EL33 EL33 AZ31
Main principle Superhet with RF-stage; ZF/IF 465 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 100-150; 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
Power out 14 W (unknown quality)
from Radiomuseum.org Model: A39J/H - Pye Ltd., Radio Works;
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes 11 bands: LW, MW, MSW (1.4 - 4.0 MHz), SW; 49 metre, 41 metre, 31 metre, 25 metre, 19 metre, 16 metre, 13 metre and 11 metre. Four 6.3V dial bulbs.

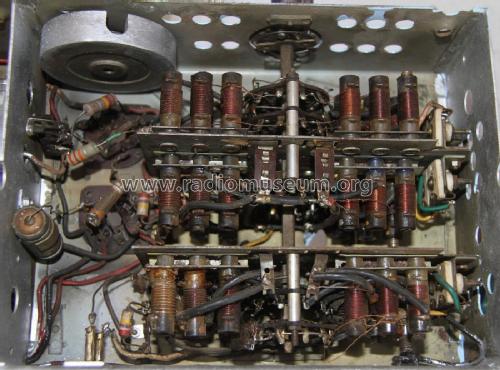

Push-pull audio output using ECC35 as phase splitter. EF39 RF pre-amp, so triple section variable capacitor (two sets according to band). On/Off switch has 4x radio tone settings and 2x "gram" tone settings, thus is off/radio/gram 7 way switch.
See also similar models 1949 PYE 39J/H model, Irish PYE 39 JH/E (adds EM34 and mesh speaker grill to PYE 39 J/H) and export model PYE PE41 (no LW and cloth speaker cover).
Case and speaker without chassis weigh 8kg.
Net weight (2.2 lb = 1 kg) 18.2 kg / 40 lb 1.4 oz (40.088 lb)
Price in first year of sale 32.00 GBP
Source of data Radio And Television Servicing books (R&TVS)

Model page created by Howard Craven. See "Data change" for further contributors.
