• Country
• Australia

• Manufacturer / Brand
• Pye Industries Ltd Australia; Marrickville

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 227515

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2N412 or. 2N219 2N410 or. 2N218 2N410 or. 2N218 2N408 2N217 2N217 unknown_diode

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4 X 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Romany Transistor A7 Ch= R21-1A - Pye Industries Ltd Australia;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 9 x 6.5 x 2.5 inch / 229 x 165 x 64 mm

• Notes

• This radio was made at the Marrickville (Sydney NSW) factory of Pye Industries Ltd. It has a good quality leather shell over stiff cardboard backing. The circuit board and speaker mount onto an aluminium plate which is folded up on the sides and bottom to provide some physical protection for the speaker, ferrite rod antenna and circuit board. The power is provided by 4 AA Cells which mount between the folded up sides of the metal chassis. This is a more satisfactory arrangement than was often used in later radios where the plastic case took the strain of the battery holding spring or springs.

  Being only a 6 transistor circuit drawing 0.013 Amps, this would be perfectly adequate for metropolitan listening but using it in remote localities would have been difficult.

  There is one diode providing the AGC voltage but this is unmarked.

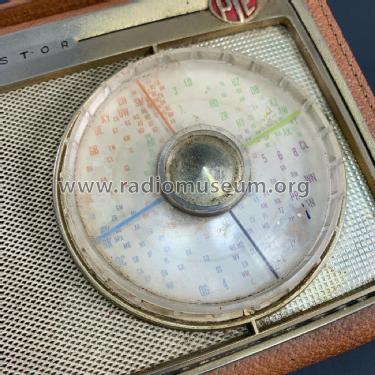

  Tuning is by a "Handspan" dial (180 degrees) and the dial diameter is 3.5 inches.



• Net weight (2.2 lb = 1 kg)
• 5 lb 0 oz (5 lb) / 2.270 kg

• Price in first year of sale
• 36.75 AUS £

• Literature/Schematics (1)
• J.R. Publications Transistor Radio Service Handbook (Vol. 1, 1960, Page P16.)

• Literature/Schematics (2)
• J.R. Publications Transistor Radio Service Handbook (A Series Handbook, Page P66.)

• Author
• Model page created by Brian Wilson. See "Data change" for further contributors.
