Black Box TS1 Ch= R24-1A

Pye Industries Ltd Australia; Marrickville

Dati
Forum
Immagini
Collezioni

  • Anno
  • 1962–1964
  • Categoria
  • Radio (o sintonizzatore del dopoguerra WW2)
  • Radiomuseum.org ID
  • 292509

Clicca sulla miniatura dello schema per richiederlo come documento gratuito.

 Specifiche tecniche

  • Numero di transistor
  • 14
  • Principio generale
  • Supereterodina con stadio RF; ZF/IF 455 kHz
  • Gamme d'onda
  • Solo onde medie (OM).
  • Particolarità
  • Giradischi (non cambiadischi)
  • Tensioni di funzionamento
  • Alimentazione a corrente alternata (CA) / 50 Hz, 230; 240 Volt
  • Altoparlante
  • 4 altoparlanti / Ø 5 inch = 12.7 cm
  • Materiali
  • Mobile di metallo
  • Radiomuseum.org
  • Modello: Black Box TS1 Ch= R24-1A - Pye Industries Ltd Australia;
  • Forma
  • Soprammobile con qualsiasi forma (non saputo).
  • Dimensioni (LxAxP)
  • 22 x 15 x 7.5 inch / 559 x 381 x 191 mm
  • Annotazioni

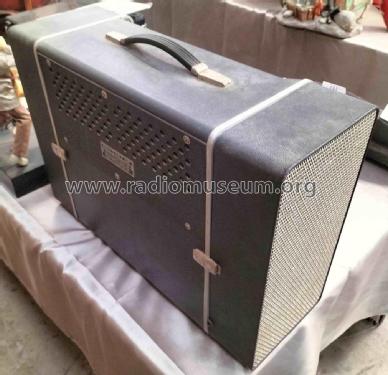

  • Pye TS1 "Black Box" Stereophone

    Portable BC AC four-speed stereogram having 14 transistor and four diodes. Housed in Vinyl-coated cabinet in charcoal black with satin-silver trim. Record storage stand in matching black and silver,

    Side mounted speaker enclosures swing forward; can be lifted off and separated up to 25 ft for greater stereophonic sound reproduction.

    Features: fully transistorised stereogram having 200-265 AC input and an operating voltage of only 14V. Garrard four-speed record player with counter-balanced tone arm; turnover cartridge. High-sensitivity superhet. radio with tuned RF stage and two bandpass-coupled I.F. stages. Stereo direction finder mounted on turntable platform, controls left and right hand speakers in five divisional steps in either direction.

    Dimensions are for without the stand & speakers closed. Stand 10½" high.

    R24-1-A TS1 SPECIFICATIONS

    • Tuning Range: 525-1640 kHz
    • Intermediate Frequency: 455 kHz
    • Input Signal Range: 10 uV/metre to 1 Volt/metre
    • Audio Sensitivity: 150 mV for full output
    • Maximum Audio Output: 3 watts (2 watts at 2%) (Contínuous sine wave)
    • Frequency Range: 60 Hz to 20,000 Hz
    • Tone Control: +/- 10 dB at 10,000 Hz
    • Bass Boost: 8 dB at 100 Hz
    • Power Source:  230-254 V 50 Hz
    • Power Consumption: 24 watts with P.F. = 0.85
  • Prezzo nel primo anno
  • 124.95 AUS £
  • Bibliografia
  • - - Manufacturers Literature (Service Data P69)
  • Autore
  • Modello inviato da Martin Kent. Utilizzare "Proponi modifica" per inviare ulteriori dati.
