Baby Q Senior

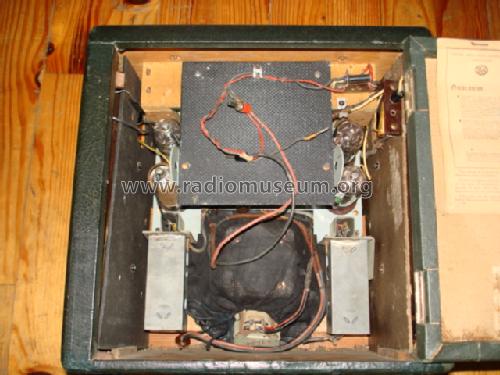

Baby Q Senior ; Pye Ltd., Radio (ID = 626275) Radio Baby Q Senior ; Pye Ltd., Radio (ID = 626276) Radio
Baby Q Senior ; Pye Ltd., Radio (ID = 626279) Radio Baby Q Senior ; Pye Ltd., Radio (ID = 626274) Radio
Baby Q Senior ; Pye Ltd., Radio (ID = 626277) Radio Baby Q Senior ; Pye Ltd., Radio (ID = 626278) Radio
Use red slider bar for more.
Baby Q Senior ; Pye Ltd., Radio (ID = 626275) Radio
Pye Ltd., Radio: Baby Q Senior [Radio] ID = 626275 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Baby Q Senior, Pye Ltd., Radio Works; Cambridge

Country:  Great Britain (UK)
Manufacturer / Brand:  Pye Ltd., Radio Works; Cambridge
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1A7G 1N5G 1H5G 1C5G
Main principle Super-Heterodyne (Super in general); ZF/IF 469 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 1.5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Baby Q Senior - Pye Ltd., Radio Works;
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 295 x 310 x 200 mm / 11.6 x 12.2 x 7.9 inch
Notes Takes dry batteries but with provision to substitute a 2V LT accumulator. The 1940 Pye New Baby Q model is similar but has Mullard side-contact valves.
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (534)

Model page created by Peter Hoddow. See "Data change" for further contributors.
