Pye Electronics Pty: EQM [Radio] ID = 2569727 1400x1144
Select picture or schematic to display from thumbnails on the right and click for download.
For model EQM, Pye Electronics Pty Ltd, Melbourne:
Mingay's Price Service, 11/54 & 5/55.

Country:  Australia
Manufacturer / Brand:  Pye Electronics Pty Ltd, Melbourne
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6AN7 6AD8 6AQ5 6V4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s); Reflex
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 200-220; 221-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: EQM - Pye Electronics Pty Ltd,
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Notes

The Pye EQM uses a slightly modified Astor QM chassis. Circuit values are otherwise the same.

This model uses permeability tuning.

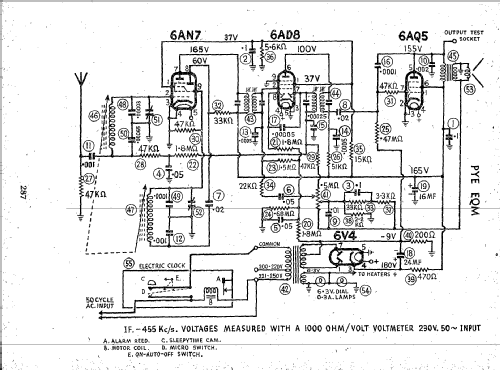

Circuit diagram reference Australian Official Radio Service Manual Vol. XIII

Model page created by Stuart Irwin. See "Data change" for further contributors.
